MCCB H Frame 36kA 3P 15A | Fixed Thermal Magnetic | Compact Design by NHP

BRAND: NHP
SKU: 140GH2C3C15
$347.70 List price: $461.70
+ −
30 Days Return Delivery Options
MCCB H Frame with 36kA breaking capacity and fixed thermal magnetic protection—ideal for industrial and commercial electrical systems. Built for reliable circuit protection, with compact design for easy integration.

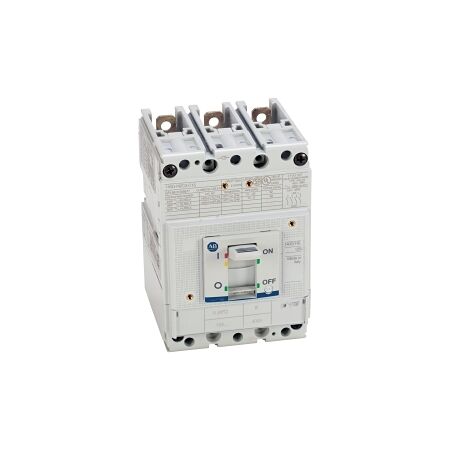

Product Name/Title: Allen-Bradley 140G MCCB H Frame 36kA 3P 15A Fixed Thermal Magnetic

Brand: NHP

SKU: 140GH2C3C15

Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Thermal Magnetic Circuit Breaker

Technical Specifications
  • Rated Current: 15 A
  • Number of Poles: 3
  • Max Rated Operation Voltage: 690 V
  • Rated Ultimate Short Circuit Breaking Capacity: 36 kA
  • Rated Service Short Circuit Breaking Capacity: 36 kA
  • Type of Protection: Thermal/magnetic release
  • Trip Curve: Fixed thermal, fixed magnetic
  • Frame Size Rating: 160 A
  • Rated Frequency: 50-60 Hz
  • Rated Insulation Voltage: 1000 V
  • Suitable for Isolation: Yes
  • Rated Short Circuit Breaking Capacity (ICU): 10 kA
  • Rated Impulse Withstand Voltage: 8 kV
  • Electrical Life: 8000 cycles
  • Power Loss: 3.4 W
  • Mechanical Life: 25000 cycles
  • Rated Surrounding Temperature: 40 °C
  • Maximum Operating Temperature: 75 °C
  • Storage Temperature: -40-80 °C
  • Max Altitude Before Derating: 2000 m
  • Dimensions (H x L x W): 130mm x 116mm x 90mm
  • Weight: 1.2 kg
Key Features
  • Fixed thermal and magnetic trip unit for reliable protection.
  • High breaking capacity of 36 kA for enhanced safety.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Motor control and protection
  • Commercial: Electrical distribution systems
  • General: Any application requiring reliable circuit protection
Standards & Compliance
  • Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
  • Designed for long service life, reducing waste and resource consumption.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 140G MCCB H Frame 36kA 3P 15A Fixed Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable circuit protection.

Non-Returnable & Non-Cancellable

140GH2C3C15-AU-140G-MCCB-H-Frame-Datasheet.pdf (140GH2C3C15-AU-140G-MCCB-H-Frame-Datasheet.pdf, 293 Kb) [Download]
