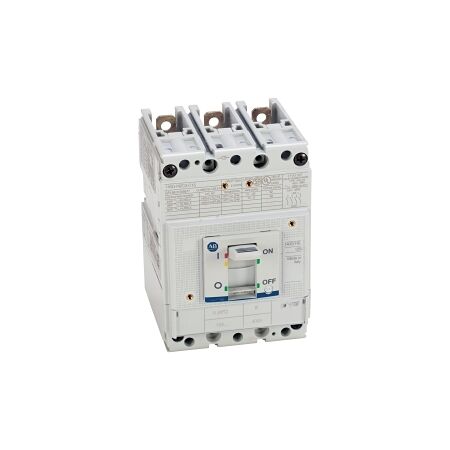

Allen-Bradley 140G MCCB H Frame 36kA 3P 50A Fixed Thermal Magnetic

MCCB H Frame 36kA 3P 50A | Fixed Thermal Magnetic | 690V by NHP

BRAND: NHP

SKU: 140GH2C3C50

$347.70 List price: $461.70

+ −

30 Days Return Delivery Options

MCCB H Frame with 36kA short circuit capacity and 50A rated current—ideal for industrial and commercial power distribution. Built for reliable protection, with fixed thermal and magnetic trip units.

Description
Attachments

Product Name/Title: Allen-Bradley 140G MCCB H Frame 36kA 3P 50A Fixed Thermal Magnetic

Brand: NHP

SKU: 140GH2C3C50

Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Thermal Magnetic Circuit Breaker

Technical Specifications

Rated Current: 50 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 36 kA
Rated Service Short Circuit Breaking Capacity: 36 kA
Type of Protection: Thermal/magnetic release
Trip Curve: Fixed thermal, fixed magnetic
Frame Size Rating: 160 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 1000 V
Rated Short Circuit Breaking Capacity (ICU): 10 kA at 690 V AC
Rated Impulse Withstand Voltage: 8 kV
Electrical Life: 8000 cycles
Mechanical Life: 25000 cycles
Power Loss: 12.3 W
Dimensions (H x L x W): 130mm x 116mm x 90mm
Weight: 1.2 kg

Key Features

Fixed thermal and magnetic trip unit for reliable protection.
Rated short circuit breaking capacity of 36 kA at 415 V.
Suitable for isolation and reverse connection of supply.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution and protection in manufacturing facilities
Commercial: Electrical panels in commercial buildings
General: Any application requiring reliable circuit protection

Standards & Compliance

Complies with relevant Australian standards for electrical safety.

Environmental Benefits

Designed for high efficiency and reliability in electrical systems.

Warranty Information

Standard warranty as per manufacturer guidelines.

Available Now

The Allen-Bradley 140G MCCB H Frame 36kA 3P 50A Fixed Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial electrical systems.

Non-Returnable & Non-Cancellable

140GH2C3C50-AU-140G-MCCB-H-Frame-Datasheet.pdf (140GH2C3C50-AU-140G-MCCB-H-Frame-Datasheet.pdf, 294 Kb) [Download]
