MCCB H Frame 50kA 3P 32A | Fixed Thermal Magnetic | Compact Design by NHP
MCCB H Frame with 50kA breaking capacity and 32A rated current—ideal for industrial and commercial power distribution. Built for reliable circuit protection, with fixed thermal and magnetic trip units.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

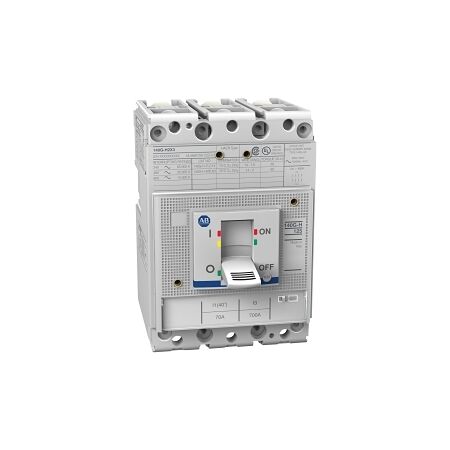

Product Name/Title: Allen-Bradley 140G MCCB H Frame 50kA 3P 32A Fixed Thermal Magnetic
Brand: NHP
SKU: 140GH3C3C32
Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Thermal Magnetic Circuit Breaker
Technical Specifications
- Rated current: 32 A
- Number of poles: 3
- Max rated operation voltage: 690 V
- Rated ultimate short circuit breaking capacity: 50 kA
- Rated service short circuit breaking capacity: 50 kA
- Type of protection: Thermal/magnetic release
- Trip curve: Fixed thermal, fixed magnetic
- Frame size rating: 160 A
- Rated frequency: 50-60 Hz
- Rated insulation voltage: 1000 V
- Suitable for isolation: Yes
- Rated short circuit breaking capacity at 690 V: 12 kA
- Rated impulse withstand voltage: 8 kV
- Electrical life: 8000 cycles
- Power loss: 7.8 W
- Mechanical life: 25000 cycles
- Rated surrounding temperature: 40 °C
- Maximum operating temperature: 75 °C
- Storage temperature: -40-80 °C
- Max altitude before derating: 2000 m
- Dimensions (H x L x W): 130mm x 116mm x 90mm
- Weight: 1.2 kg
Key Features
- Rated current: 32 A
- Three poles for enhanced circuit protection
- Fixed thermal and magnetic trip unit for reliable operation
- High breaking capacity of 50 kA at 415 V
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution and protection in manufacturing facilities
- Commercial: Electrical systems in commercial buildings
- General: Any application requiring reliable circuit protection
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for high efficiency and reliability in electrical systems.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 140G MCCB H Frame 50kA 3P 32A Fixed Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
