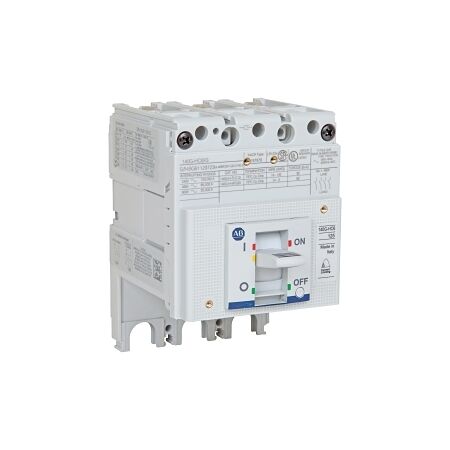

MCCB H Frame 70kA 3P 100A | Adjustable Thermal Magnetic | Compact Design by NHP

BRAND: NHP
SKU: 140GH6F3D10
$797.60 List price: $1,059.10
+ −
30 Days Return Delivery Options
MCCB with 70kA breaking capacity and adjustable thermal magnetic settings—ideal for industrial power distribution. Built for reliable circuit protection, with compact design for easy installation.

Product Name/Title: Allen-Bradley 140G MCCB H Frame 70kA 3P 100A Adjustable Thermal Magnetic

Brand: NHP

SKU: 140GH6F3D10

Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Thermal Magnetic Circuit Breaker

Technical Specifications
  • Rated Current: 100 A
  • Number of Poles: 3
  • Max Rated Operation Voltage: 690 V
  • Rated Ultimate Short Circuit Breaking Capacity: 70 kA
  • Rated Service Short Circuit Breaking Capacity: 70 kA
  • Type of Protection: Thermal/magnetic release
  • Trip Curve: Adjustable thermal, adjustable magnetic
  • Frame Size Rating: 160 A
  • Long Time Overload Protection Adjustment Range: 70-100 A
  • Instantaneous Protection Adjustment Range: 550-1100 A
  • Rated Frequency: 50-60 Hz
  • Rated Insulation Voltage: 1000 V
  • Rated Short Circuit Breaking Capacity (ICU): 15 kA
  • Rated Impulse Withstand Voltage: 8 kV
  • Electrical Life: 8000 cycles
  • Mechanical Life: 25000 cycles
  • Power Loss: 24.3 W
  • Rated Surrounding Temperature: -40-80 °C
  • Dimensions (H x L x W): 130mm x 116mm x 90mm
  • Weight: 1.2 kg
Key Features
  • Adjustable thermal and magnetic trip settings for customized protection.
  • High breaking capacity of 70 kA for reliable short circuit protection.
  • Suitable for isolation and can handle reverse connection of supply.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution and protection in commercial and industrial settings.
  • General: Suitable for various electrical installations requiring circuit protection.
Standards & Compliance
  • Complies with AS/NZS 60950 for safety of electrical equipment.
Environmental Benefits
  • Designed for high efficiency, reducing energy loss and improving overall system performance.
Warranty Information

Standard warranty as per manufacturer’s policy.

Available Now

The Allen-Bradley 140G MCCB H Frame 70kA 3P 100A Adjustable Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable circuit protection.
