MCCB J Frame 36kA 3P 150A | Electronic LSI | High Breaking Capacity by NHP
MCCB J Frame with 36kA breaking capacity and electronic LSI—ideal for industrial and commercial electrical distribution. Built for precise protection, with high efficiency and energy loss reduction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

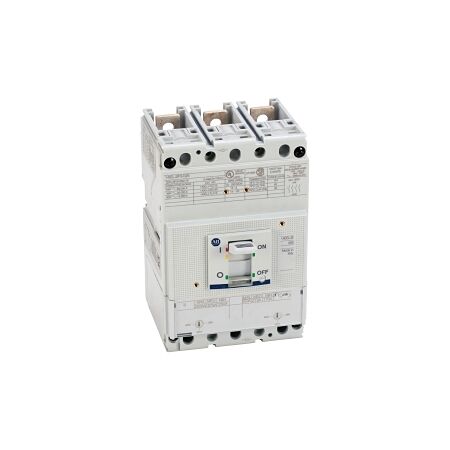

Product Name/Title: Allen-Bradley 140G MCCB J Frame 36kA 3P 150A Electronic LSI
Brand: NHP
SKU: 140GJ2H3D15
Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Circuit Breaker 150A
Technical Specifications
- Rated Current: 150 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 36 kA
- Rated Service Short Circuit Breaking Capacity: 36 kA
- Type of Protection Trip Unit: Electronic release
- Trip Curve: LSI
- Frame Size Rating: 250 A
- Long Time Overload Protection Adjustment Range: 60-150 A
- Instantaneous Protection Adjustment Range: 150-1500 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 1000 V
- Suitable for Isolation: Yes
- Rated Short Circuit Breaking Capacity (ICU): 10 kA
- Rated Short Circuit Breaking Capacity (ICS): 10 kA
- Short Time Protection Adjustment Range: 150-1500 A
- Rated Impulse Withstand Voltage: 8 kV
- Reverse Connection of Supply Possible: Yes
- Electrical Life at Un in Service Cycles: 8000 cycles
- Power Loss: 23.5 W
- DIN Rail Top Hat Rail Mounting Optional: Yes
- Mechanical Life Service Cycles: 25000 cycles
- Rated Surrounding Temperature Without Derating: 40 °C
- Maximum Operating Temperature: 75 °C
- Storage Temperature: -40-80 °C
- Max Altitude Before Derating: 2000 m
- Dimensions (H x L x W): 160mm x 117mm x 105mm
- Weight: 2.5 kg
Key Features
- Electronic release trip unit for precise protection.
- High breaking capacity of 36 kA at 415 V.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor control and protection
- Commercial: Electrical distribution systems
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Designed for high efficiency, reducing energy loss and improving system reliability.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 140G MCCB J Frame 36kA 3P 150A Electronic LSI is available now for immediate purchase. Ideal for industrial and commercial electrical distribution systems.
