MCCB J Frame 36kA 3P 50A | Fixed Thermal Magnetic | 690V by NHP
MCCB with 36kA breaking capacity and 3 poles—ideal for industrial motor control and commercial electrical distribution. Built for reliable protection, with fixed thermal and magnetic trip unit.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

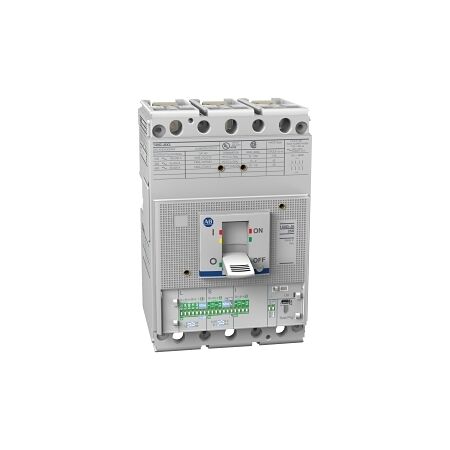

Product Name/Title: Allen-Bradley 140G MCCB J Frame 36kA 3P 50A Fixed Thermal Magnetic
Brand: NHP
SKU: 140GJ2C3C50
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Thermal Magnetic Circuit Breaker
Technical Specifications
- Rated Current: 50 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 36 kA
- Rated Service Short Circuit Breaking Capacity: 36 kA
- Type of Protection: Thermal/magnetic release
- Trip Curve: Fixed thermal, fixed magnetic
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 1000 V
- Rated Short Circuit Breaking Capacity (ICU): 10 kA
- Rated Impulse Withstand Voltage: 8 kV
- Electrical Life: 8000 cycles
- Power Loss: 14.1 W
- Mechanical Life: 25000 cycles
- Rated Surrounding Temperature: 40 °C
- Maximum Operating Temperature: 75 °C
- Storage Temperature: -40-80 °C
- Max Altitude Before Derating: 2000 m
- Dimensions (H x L x W): 160mm x 117mm x 105mm
- Weight: 2.5 kg
Key Features
- Fixed thermal and magnetic trip unit for reliable protection.
- High breaking capacity of 36 kA for enhanced safety.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor control and protection
- Commercial: Electrical distribution systems
Standards & Compliance
- Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
- Designed for long service life, reducing waste and resource consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 140G MCCB J Frame 36kA 3P 50A Fixed Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial electrical distribution systems.
