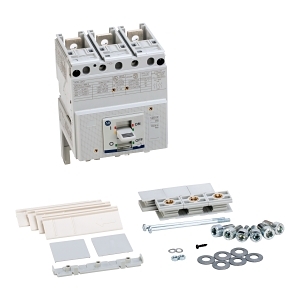

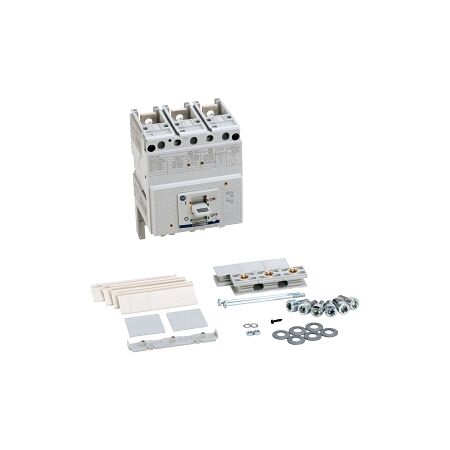

MCCB J Frame 50kA 3P 200A Adjustable Thermal Magnetic NHP

BRAND: Allen-Bradley
SKU: 140GJ3F3D20
$1,519.30 List price: $1,893.30
+ −
30 Days Return Electricians Unlock Trade Access
MCCB with 200A rating and adjustable thermal magnetic trip—ideal for industrial and commercial power distribution.
Technical Specifications
  • Rated Current: 200 A
  • Number of Poles: 3
  • Max Rated Operation Voltage: 690 V
  • Rated Ultimate Short Circuit Breaking Capacity: 50 kA
  • Rated Service Short Circuit Breaking Capacity: 50 kA
  • Type of Protection: Thermal/magnetic release
  • Trip Curve: Adjustable thermal, adjustable magnetic
  • Frame Size Rating: 250 A
  • Long Time Overload Protection Adjustment Range: 140-200 A
  • Instantaneous Protection Adjustment Range: 1000-2000 A
  • Rated Frequency: 50-60 Hz
  • Rated Insulation Voltage: 1000 V
  • Suitable for Isolation: Yes
  • Rated Short Circuit Breaking Capacity (ICU): 12 kA
  • Rated Short Circuit Breaking Capacity (ICS): 12 kA
  • Rated Impulse Withstand Voltage: 8 kV
  • Reverse Connection of Supply Possible: Yes
  • Electrical Life: 8000 cycles
  • Power Loss: 35.7 W
  • DIN Rail Mounting Optional: Yes
  • Mechanical Life: 25000 cycles
  • Rated Surrounding Temperature: 40 °C
  • Maximum Operating Temperature: 75 °C
  • Storage Temperature: -40-80 °C
  • Max Altitude Before Derating: 2000 m
  • Dimensions (H x L x W): 160mm x 117mm x 105mm
  • Weight: 2.5 kg
Key Features
  • Adjustable thermal and magnetic trip settings for customized protection.
  • High short-circuit breaking capacity of 50 kA at 415 V.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution and protection in manufacturing facilities
  • Commercial: Electrical systems in commercial buildings
  • General: Suitable for various electrical installations requiring circuit protection
Environmental Benefits
  • Designed for high efficiency, reducing energy loss and improving system reliability.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 140G MCCB J Frame 50kA 3P 200A Adjustable Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
