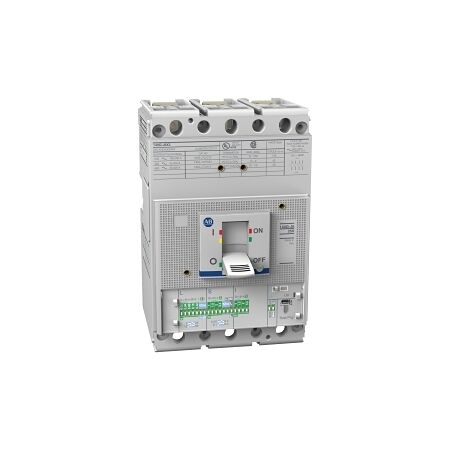

Allen-Bradley 140G MCCB J Frame 70kA 3P 100A Electronic LSIG

MCCB J Frame 70kA 3P 100A | Electronic LSIG | High Capacity by NHP

BRAND: NHP

SKU: 140GJ6I3D10

$3,539.10 List price: $4,699.50

+ −

30 Days Return Delivery Options

MCCB J Frame with 70kA short circuit capacity and electronic LSIG protection—ideal for industrial power distribution. Built for precise protection, with integrated earth fault protection and high efficiency.

Description
Attachments

Product Name/Title: Allen-Bradley 140G MCCB J Frame 70kA 3P 100A Electronic LSIG

Brand: NHP

SKU: 140GJ6I3D10

Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Circuit Breaker 100A

Technical Specifications

Rated Current: 100 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 70 kA
Rated Service Short Circuit Breaking Capacity: 70 kA
Type of Protection Trip Unit: Electronic release
Trip Curve: LSIG
Frame Size Rating: 250 A
Long Time Overload Protection Adjustment Range: 40-100 A
Instantaneous Protection Adjustment Range: 100-1000 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 1000 V
Rated Short Circuit Breaking Capacity (ICU): 15 kA
Rated Short Circuit Breaking Capacity (ICS): 15 kA
Rated Impulse Withstand Voltage: 8 kV
Electrical Life: 8000 cycles
Mechanical Life: 25000 cycles
Power Loss: 10.5 W
Dimensions (H x L x W): 160mm x 117mm x 105mm
Weight: 2.5 kg

Key Features

Electronic release trip unit for precise protection.
Integrated earth fault protection.
High short circuit breaking capacity of 70 kA.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution and protection in commercial and industrial settings
General: Suitable for various electrical installations requiring circuit protection

Standards & Compliance

Complies with relevant Australian standards for electrical safety.

Environmental Benefits

Designed for high efficiency and reliability in electrical systems.

Warranty Information

Standard warranty applies.

Available Now

The Allen-Bradley 140G MCCB J Frame 70kA 3P 100A Electronic LSIG is available now for immediate purchase. Ideal for industrial and commercial electrical installations.

Non-Returnable & Non-Cancellable

140GJ6I3D10-AU-140G-MCCB-J-Frame-Datasheet.pdf (140GJ6I3D10-AU-140G-MCCB-J-Frame-Datasheet.pdf, 285 Kb) [Download]
