MCCB N Frame 70kA 3P 1200A | Electronic LSIG | High Capacity by NHP
MCCB N Frame with 70kA short-circuit capacity and electronic LSIG protection—ideal for industrial and commercial power distribution. Built for precise protection, with integrated earth fault safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

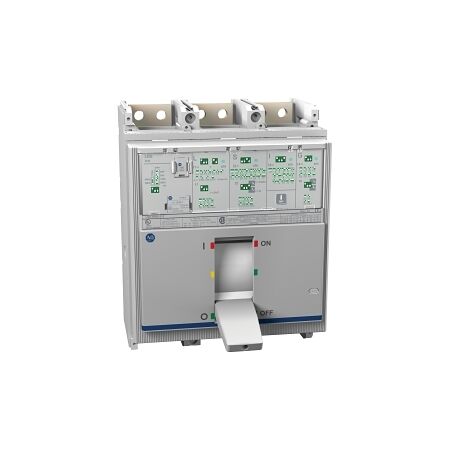

Product Name/Title: Allen-Bradley 140G MCCB N Frame 70kA 3P 1200A Electronic LSIG
Brand: NHP
SKU: 140GN6I3E12
Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Circuit Breaker 1200A
Technical Specifications
- Rated Current: 1200 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 70 kA
- Rated Service Short Circuit Breaking Capacity: 70 kA
- Type of Protection Trip Unit: Electronic release
- Trip Curve: LSIG
- Long Time Overload Protection Adjustment Range: 480-1200 A
- Instantaneous Protection Adjustment Range: 1800-18000 A
- Rated Insulation Voltage: 1000 V
- Rated Short Circuit Breaking Capacity (ICU): 42 kA
- Rated Short Circuit Breaking Capacity (ICS): 31.5 kA
- Rated Impulse Withstand Voltage: 8 kV
- Electrical Life: 2000 cycles
- Mechanical Life: 10000 cycles
- Power Loss: 252 W
- Rated Surrounding Temperature: 40 °C
- Maximum Operating Temperature: 75 °C
- Storage Temperature: -40-80 °C
- Max Altitude Before Derating: 2000 m
- Dimensions (H x L x W): 268mm x 154mm x 210mm
- Weight: 9.7 kg
Key Features
- Electronic release trip unit for precise protection.
- Integrated earth fault protection for enhanced safety.
- High short-circuit breaking capacity of 70 kA.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety and compliance.
Applications
- Industrial: Power distribution and protection in manufacturing facilities
- Commercial: Electrical systems in commercial buildings
- General: Any application requiring reliable circuit protection
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety standards.
Environmental Benefits
- Designed for high efficiency, reducing energy loss and operational costs.
Warranty Information
Standard warranty as per manufacturer’s policy.
Available Now
The Allen-Bradley 140G MCCB N Frame 70kA 3P 1200A Electronic LSIG is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable circuit protection.
