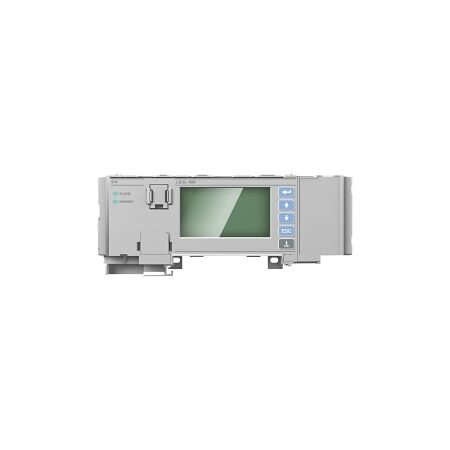

Allen-Bradley 140G MCCB N Frame Trip Unit 3P 1200A Electronic LSIG Maintenance Instantaneous

MCCB N Frame Trip Unit 3P 1200A | Electronic LSIG | Adjustable Protection by NHP

BRAND: NHP

SKU: 140GNTKE12

$10,185.80 List price: $13,525.40

+ −

30 Days Return Delivery Options

MCCB N Frame trip unit with 1200A rated current and electronic LSIG protection—ideal for industrial and commercial power distribution. Built for precise trip settings, with adjustable overload and instantaneous protection.

Description
Attachments

Product Name/Title: Allen-Bradley 140G MCCB N Frame Trip Unit 3P 1200A Electronic LSIG Maintenance Instantaneous

Brand: NHP

SKU: 140GNTKE12

Alternatively Known As: MCCB, Molded Case Circuit Breaker, Electronic Trip Unit

Technical Specifications

Rated Current: 1200 A
Number of Poles: 3
Type of Protection: Electronic release
Trip Curve: LSIG
Long Time Overload Protection Adjustment: 480-1200 A
Instantaneous Protection Adjustment: 1800-18000 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 1000 V
Short Time Protection Adjustment: 720-12000 A
Rated Impulse Withstand Voltage: 8 kV
Maximum Operating Temperature: 75 °C
Storage Temperature: -40-80 °C
Max Altitude Before Derating: 2000 m
Dimensions (H x L x W): 300mm x 150mm x 210mm
Weight: 10 kg

Key Features

Electronic release for precise trip settings.
LSIG trip curve for comprehensive protection.
Adjustable long time overload and instantaneous protection.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical systems in large buildings
General: Protection of electrical circuits in various applications

Standards & Compliance

Complies with AS/NZS 60898 for safety and performance standards.

Environmental Benefits

Designed for high efficiency and reliability in electrical systems.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 140G MCCB N Frame Trip Unit 3P 1200A is available now for immediate purchase. Ideal for industrial and commercial electrical systems.

Non-Returnable & Non-Cancellable

140GNTKE12-AU-140G-MCCB-Trip-Unit-Datasheet.pdf (140GNTKE12-AU-140G-MCCB-Trip-Unit-Datasheet.pdf, 165 Kb) [Download]
