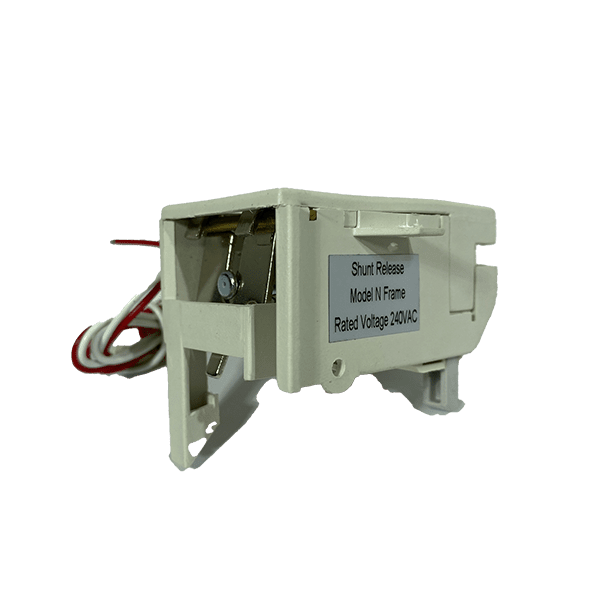

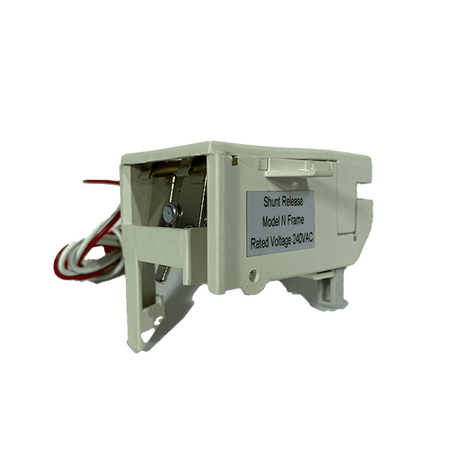

MCCB Shunt Trip 240VAC N Frame Eltech
Eltech MCCB shunt trip features 240VAC coil voltage, N-frame fit and remote trip operation. Ideal for switchboard remote switching.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Eltech Shunt Trip WNSHT240, N‑Frame shunt trip accessory
Technical Specifications
- Control Voltage: 240 VAC
- Compatible Frame: N‑Frame MCCB
- Poles: 3P (fits N‑Frame 1000–1250 A breakers)
- Short‑Circuit Breaking Capacity (Icu): 70 kA
- Rated Insulation Voltage (Ui): 1000 V
- Impulse Withstand Voltage (Uimp): 12 kV
- Compliance Standard: AS/NZS 60947.2
- Dimensions (H x L x W): 0mm x 0mm x 0mm
- Weight: 0.1 kg
Key Features
- Enables remote tripping of large N‑Frame MCCBs
- Designed for high‑fault current applications with 70 kA Icu
- Built to Australian standards AS/NZS 60947.2
- Compact accessory module for retrofit or initial installation
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and manufacturer’s instructions.
Applications
- Remote trip control for main switchboard MCCBs
- Emergency shutdown systems in commercial/industrial installations
- Safety integration in power distribution systems
Standards & Compliance
- AS/NZS 60947.2 (Low‑voltage switchgear and controlgear)
Warranty Information
7‑year warranty when installed by a licensed electrician in accordance with manufacturer’s instructions, with proof of purchase. ([eltech.com.au](https://eltech.com.au/wp-content/uploads/2022/07/Terms-and-Conditions-of-Trade-Eltech.pdf?utm_source=openai))
Available Now
Available through authorised Eltech distributors in Australia.
