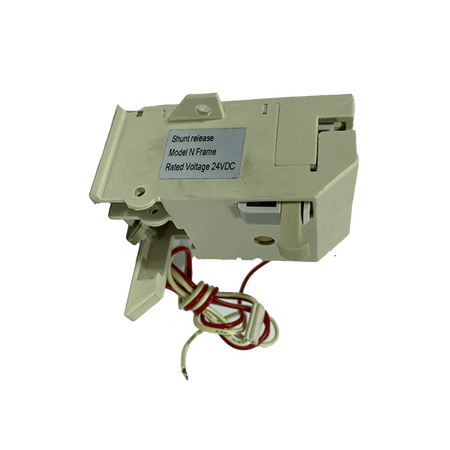

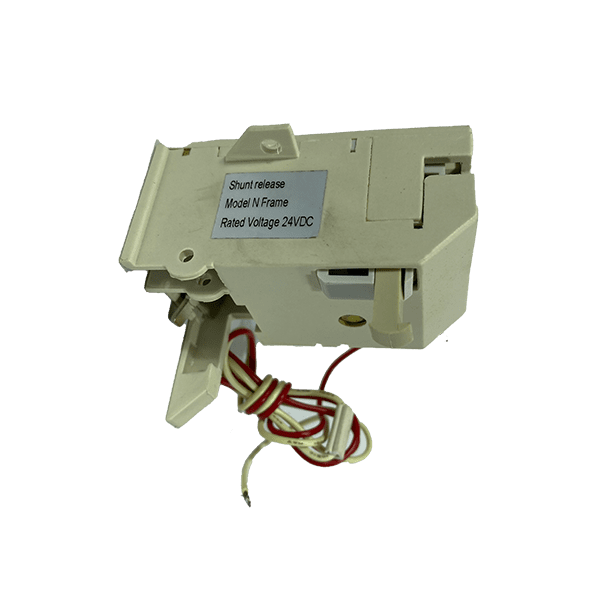

MCCB Shunt Trip 24VDC N Frame Eltech

BRAND: Eltech
SKU: WNSHT24
$170.20 List price: $226.90
+ −
30 Days Return Electricians Unlock Trade Access
Eltech MCCB shunt trip features 24VDC coil voltage, N-frame fit and remote trip operation. Ideal for switchboard remote switching.

Alternatively Known As: Eltech WNSHT24 Shunt Trip Module

Technical Specifications
  • Coil Voltage: 24 V DC
  • Module Type: HC Series N‑Frame MCCB shunt trip accessory
  • Function: Remote trip actuation of MCCB main contacts
  • Mounting: Left‑side accessory module for N‑Frame (1000 A–1250 A) breakers
  • Standards: Compatible with AS/NZS 60947‑2 rated MCCBs
  • Dimensions (H x L x W): 72mm x 17.7mm x 20.1mm
  • Weight: 0.1 kg
Key Features
  • Enables remote disconnection of N‑Frame MCCB via 24 V DC control
  • Designed specifically for Eltech/Westinghouse HC Series N‑Frame MCCBs
  • Suitable for large switchboard and service protection applications
  • Integrates seamlessly into existing MCCB frames
Professional Installation Requirements
  • Installation by a licensed electrician, in accordance with AS/NZS 3000 and AS/NZS 60947‑2 requirements.
Applications
  • Remote switching and emergency trip functions in switchboards
  • Main switchboard service protection using N‑Frame MCCBs
  • Industrial and commercial power distribution systems requiring remote trip capability
Standards & Compliance
  • AS/NZS 60947‑2
Environmental Benefits
  • Extends MCCB functionality without replacing entire breaker
  • Supports inclusion in energy‑efficient safety control systems
Warranty Information

Electrotechnics Corporation (“ELTEC”) provides a limited 25‑month warranty from date of sale against material or workmanship defects. ([elteccorp.com](https://elteccorp.com/tech-support/?utm_source=openai))

Available Now

Available through authorised Australian distributors; compatible with Eltech HC Series N‑Frame MCCBs.
