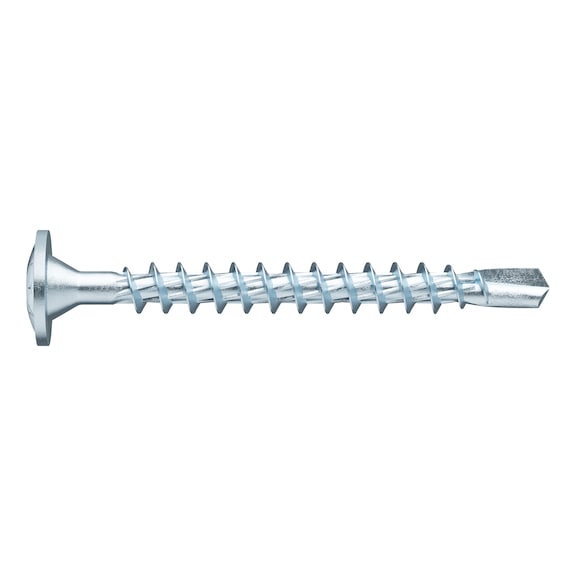

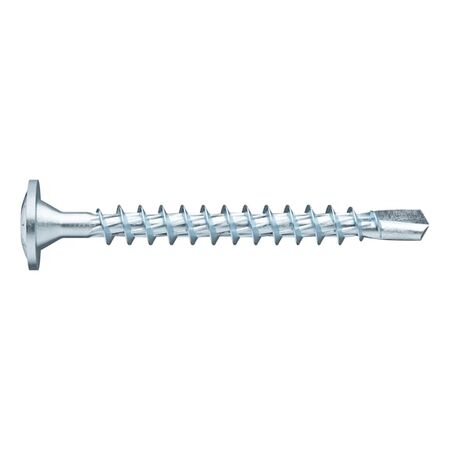

MDF Rear Panel Screws | Full Thread & Washer Head | 500 PCS | by Wurth
MDF rear panel screws with full thread and washer head are perfect for furniture assembly and interior fitting. Designed for optimal power transmission and stability, these screws ensure a secure fit without predrilling or splitting MDF materials. Ideal for professionals, they provide a visually appealing finish and maximum pull-out strength, making them a reliable choice for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MDF Rear Panel Screws | Full Thread & Washer Head | 500 PCS | by Wurth
Brand: Wurth
SKU: 178333530
Alternatively Known As: MDF rear panel screws, full thread MDF screws, washer head MDF screws, furniture assembly screws, zinc plated MDF screws
Technical Specifications
- Nominal diameter: 3.4 mm
- Length: 30 mm
- Thread length: 20 mm
- Screw-thread length with drill tip: 25 mm
- Head type: Round washer head
- Head diameter: 8 mm
- Head height: 1.4 mm
- Internal drive: RW10
- Thread type: Wood screw thread
- Thread design: Full thread
- Thread form: Single start thread
- Core diameter: 1.9 mm
- Shape of tip: Drilling tip
- Material: Hardened steel
- Surface: Zinc plated
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- Suitable materials: Wood, Derived timber product, MDF, Chipboard, Plywood
- Area of application: Furniture, Cabinet, Store construction, Exhibition stand construction, Interior fitting, MDF-Furniture
- Approval: ETA-11/0190
- Product weight per item: 1.496 g
- RoHS-compliant: Yes
- Dimensions (H x L x W): 1.4mm x 30mm x 8mm
- Weight: 0.75 kg
Key Features
- Full-thread screw with geometry and drill tip attuned to MDF for mounting rear walls in MDF front faces without predrilling, splitting, or bulging
- Ideal power transmission thanks to RW drive
- Larger contact area at the bit for more power
- More stability and precise positioning due to tight-fit recess and perfect fit of the bit
- Fewer bit changes, one bit for many screw diameters
- Compatibility with previous AW drive
- Screw fitting without gaps or bulging in MDF front surfaces
- Optimised and extended drill tip for screw fittings without gaps or bulging
- Powerful connection for thin fibreboards used as furniture back panels
- Large flat-shaped washer head for strong connection
- Visually appealing flat screw connection
- Maximum pull-out strength and minimum splitting effect
- Thread attuned to MDF material
- Optimum distribution of drilling chips through serrated screw core
- Prevents pressing in MDF due to thin core diameter and high thread flanks
Professional Installation Requirements
- Installation by professionals or skilled personnel recommended to ensure proper fitting and avoid damage to MDF materials.
Applications
- Furniture assembly
- Cabinet making
- Store construction
- Exhibition stand construction
- Interior fitting
- MDF furniture assembly
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable hardened steel construction extends product life reducing waste
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
Wurth ASSY®plus 4 BP MDF rear panel screws are available for immediate purchase, ideal for furniture and interior fitting applications.
