Trade Discount 20%
Measuring Wheel Encoder MWS075 | EtherCAT Communication | Programmable & Configurable | by SICK

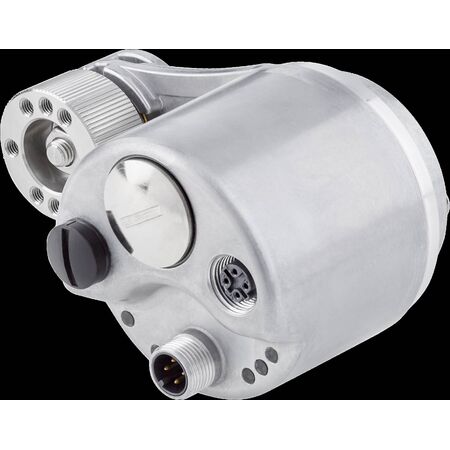

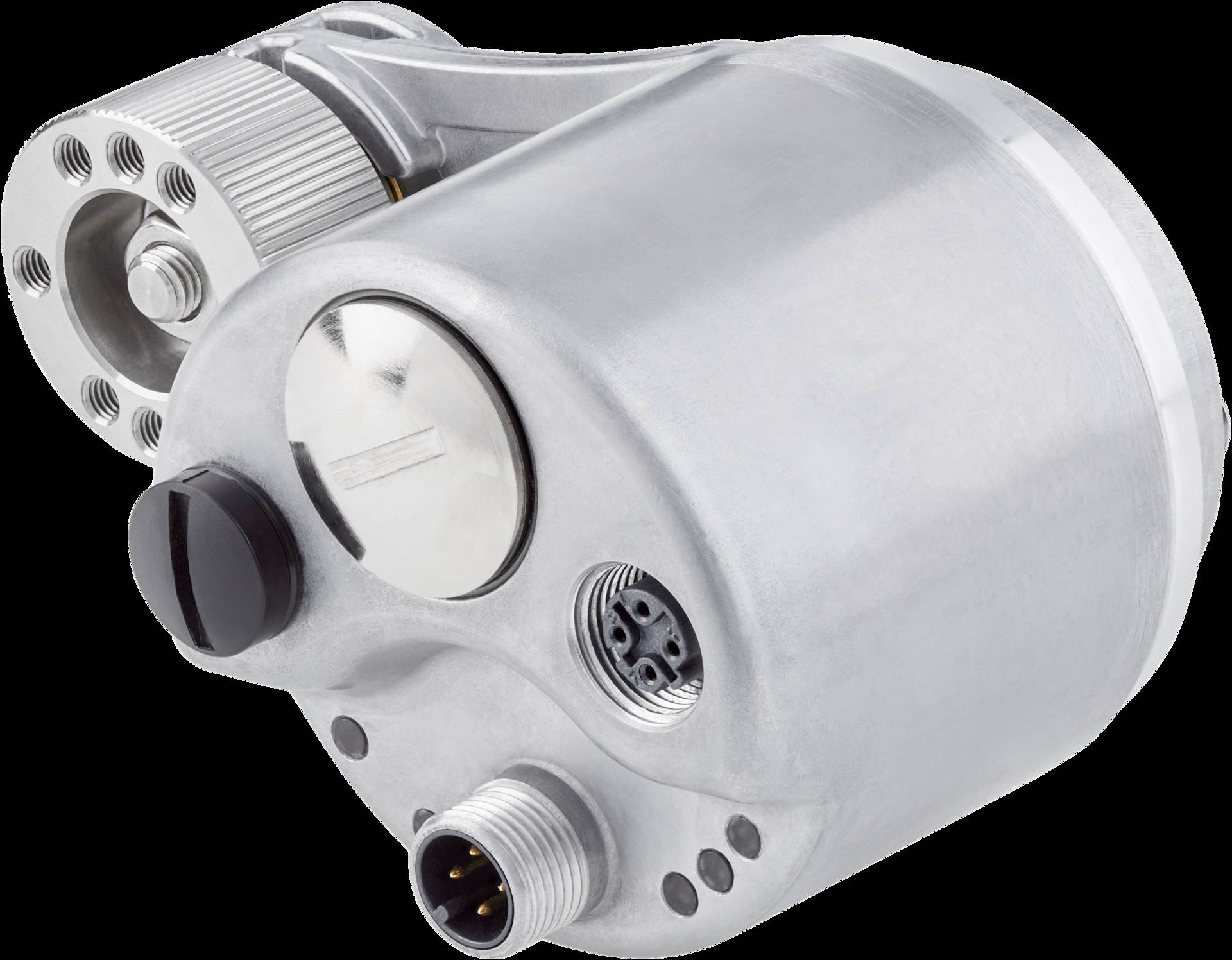

The MWS075 measuring wheel encoder is designed for precise linear movement measurement in industrial automation. With EtherCAT communication and a multiturn version for extended range, it supports flexible integration and offers manually adjustable contact pressure for accuracy. Ideal for motion control systems, this encoder ensures reliable speed and position feedback across various industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Measuring Wheel Encoder MWS075 | EtherCAT Communication | Programmable & Configurable | by SICK
Brand: SICK
SKU: 1149671
Alternatively Known As: Measuring wheel encoder, linear movement encoder, surface movement sensor
Technical Specifications
- Communication Interface: EtherCAT® with CoE (CAN over EtherCAT®)
- Programmable and configurable encoder
- Multiturn version for extended measurement range
- Connection types: male and female connectors
- Compact axle spacing: 63.5 mm
- Maximum spring travel: 14 mm with mechanical protection
- Dimensions (H x L x W): 100mm x 150mm x 100mm
- Weight: 0.5 kg
Key Features
- Manually adjustable contact pressure from 0 to 15 N for precise measurements
- Supports all available encoder interfaces for flexible integration
- Compact axle spacing of 63.5 mm
- Maximum spring travel of 14 mm with mechanical overload protection
- Flexible encoder mounting on both sides in 30° increments
- Variety of measuring wheel surfaces and circumferences available
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper integration and calibration.
Applications
- Industrial automation for dynamic linear surface movement measurement
- Motion control systems requiring precise speed and position feedback
- Integration in various industrial sectors needing reliable measurement
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy-efficient operation supports sustainable industrial processes
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK MWS075 measuring wheel encoder is available for immediate purchase, ideal for industrial motion control and automation applications.
