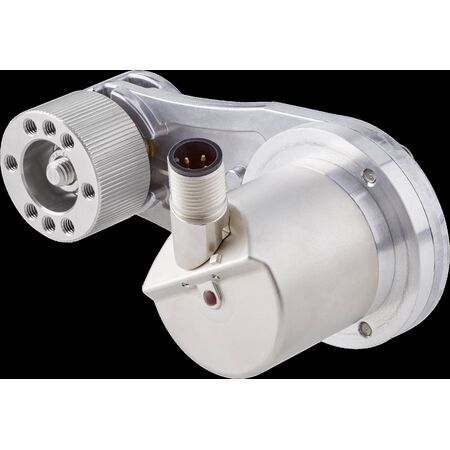

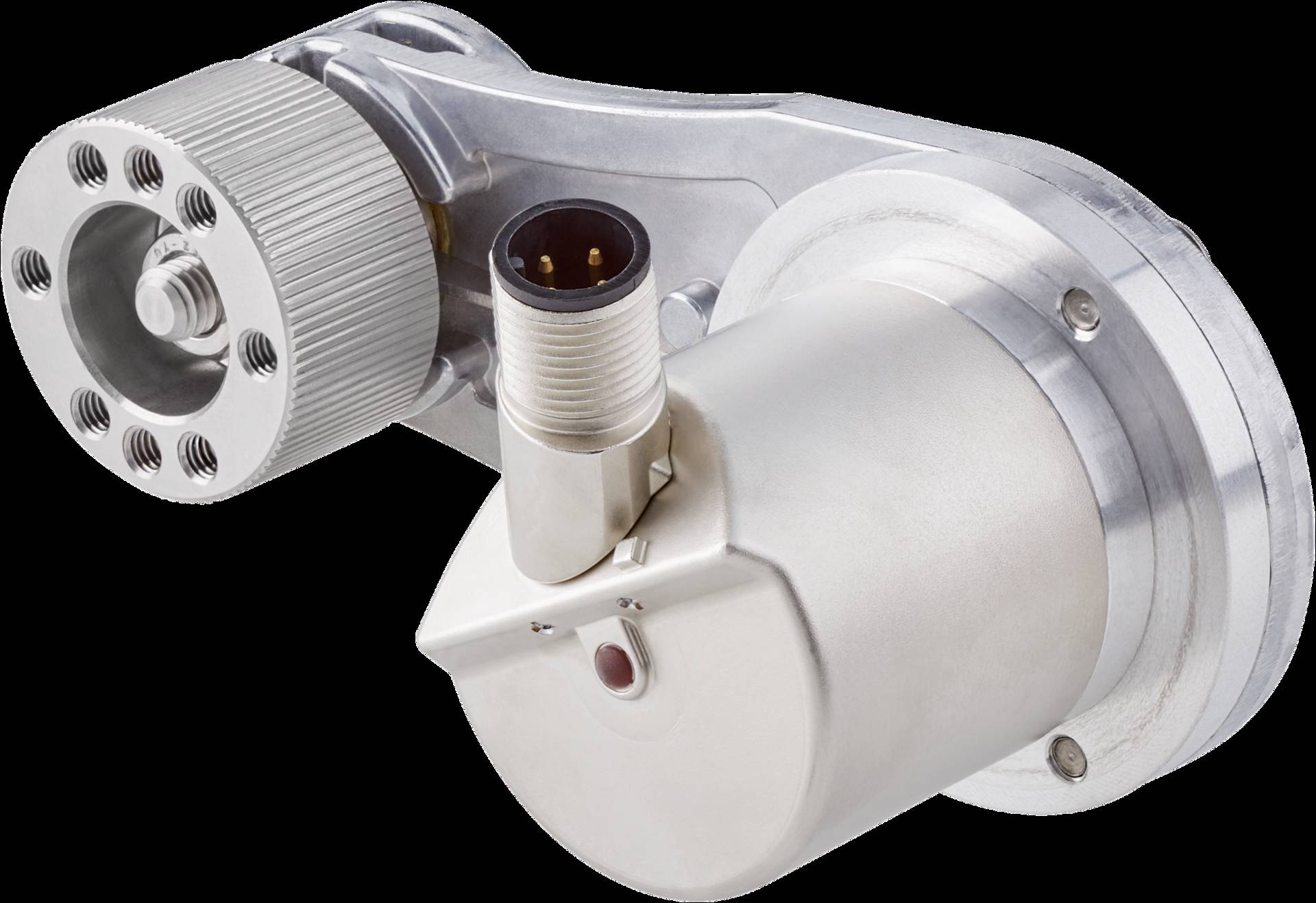

Measuring Wheel Encoder MWS075 | IO-Link V1.1 | Adjustable Contact Pressure | Compact Design | by SICK
The MWS075 measuring wheel encoder is designed for precise linear movement measurement in industrial automation. With a manually adjustable contact pressure from 0 to 15 N and support for all encoder interfaces, it ensures accurate position and speed measurement. Ideal for manufacturing processes and motion control systems, this encoder features a compact axle spacing of 63.5 mm and a maximum spring travel of 14 mm, making it versatile for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Measuring Wheel Encoder MWS075 | IO-Link V1.1 | Adjustable Contact Pressure | Compact Design | by SICK
Brand: SICK
SKU: 1152901
Alternatively Known As: Measuring wheel encoder, linear movement sensor, surface movement encoder
Technical Specifications
- Communication interface: IO-Link V1.1
- Programmable/configurable: Yes
- Connection type: Male connector
- Compact axle spacing: 63.5 mm
- Maximum spring travel: 14 mm with mechanical protection
- Contact pressure: Manually adjustable from 0 to 15 N
- Dimensions (H x L x W): 100mm x 150mm x 100mm
- Weight: 0.5 kg
Key Features
- Manually adjustable contact pressure from 0 to 15 N for precise measurements
- Supports all available encoder interfaces
- Compact axle spacing of 63.5 mm
- Maximum spring travel of 14 mm with mechanical protection
- Flexible encoder mounting on both sides in 30° increments
- Variety of measuring wheel surfaces and circumferences available
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper integration and calibration.
Applications
- Industrial automation for dynamic linear surface movement measurement
- Position and speed measurement in manufacturing processes
- Integration in motion control sensor systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances system efficiency by providing accurate measurement data
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK MWS075 measuring wheel encoder is available for immediate purchase, ideal for industrial motion control and automation applications.
