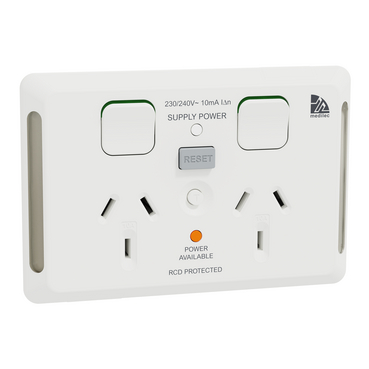

Medilec Twin Switched Socket Outlet 10mA RCD Protection Antibacterial Surface Glossy Finish Clipsal

BRAND: Clipsal
SKU: MLP3025RCD10A-WE
$262.40 List price: $343.20
+ −
30 Days Return Electricians Unlock Trade Access
The Medilec twin switched socket outlet features integrated 10mA RCD protection and an antibacterial surface, making it ideal for hospitals and healthcare facilities. Designed for enhanced electrical safety, this double socket outlet includes amber and white LED indicators for RCD and power status, ensuring reliable performance in critical environments.

Product Name/Title: Medilec Twin Switched Socket Outlet 10mA RCD Protection Antibacterial Surface Glossy Finish Clipsal

Brand: Clipsal

SKU: MLP3025RCD10A-WE

Alternatively Known As: Medical RCD double power point, hospital grade RCD socket, Clipsal Medilec RCD outlet, 10mA RCD twin socket, medical double GPO with RCD, Clipsal MLP3025RCD10A-WE

Technical Specifications
  • Product Type: RCD socket outlet
  • Number of gangs: 2
  • Number of outlets: 2 x 2P + E (Australian/New Zealand)
  • Rated operational voltage: 230–240 V AC
  • Rated current: 10 A
  • Trip unit rating: 10 mA
  • Earth-leakage protection class: Type I and Type A
  • Network frequency: 50 Hz
  • Control type: Rocker
  • Socket-outlet type: Double socket-outlet
  • Mounting type: Screw, wall-mounted, horizontal orientation
  • Material: ABS (acrylonitrile butadiene-styrene), antibacterial surface
  • Surface finish: Glossy
  • Protection: Shuttered
  • Local signalling: Amber LED (RCD status), White LED (power status)
  • Connections: 4 x 2.5 mm² screw terminal, 3 x 4 mm² screw terminal
  • Wire stripping length: 16 mm
  • Embedding depth: 34.6 mm
  • Cover thickness: 9 mm
  • IP rating: IP20
  • Ambient temperature for operation: 0–45°C
  • Relative humidity: 10–95%
  • Standards: AS/NZS 3190, AS/NZS 3100, ISO 22196
  • Dimensions (H x L x W): 78mm x 44mm x 116mm
  • Weight: 0.21 kg
Key Features
  • Integrated 10mA RCD protection for enhanced electrical safety
  • Twin switched double socket outlets
  • Antibacterial surface treatment for infection control
  • Amber and white LED indicators for RCD and power status
  • Shuttered outlets for added safety
  • Permanent circuit identification windows
  • Glossy, easy-to-clean finish
  • Wall-mounted, horizontal installation
  • Suitable for medical and healthcare environments
Professional Installation Requirements
  • Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules and local regulations.
Applications
  • Hospitals and healthcare facilities
  • Medical clinics and consulting rooms
  • Aged care and nursing homes
  • Laboratories
  • Any environment requiring enhanced electrical safety and infection control
Standards & Compliance
  • Complies with AS/NZS 3190 for RCDs
  • Complies with AS/NZS 3100 for electrical equipment safety
  • Complies with AS/NZS 3000 for wiring rules
Environmental Benefits
  • Antibacterial surface reduces the spread of harmful microbes
  • Long product lifecycle reduces replacement frequency and waste
  • Low standby power consumption
Warranty Information

24 months warranty against manufacturing defects.

Available Now

Available for immediate purchase. Ideal for medical, healthcare, and aged care environments requiring high safety and infection control standards.
