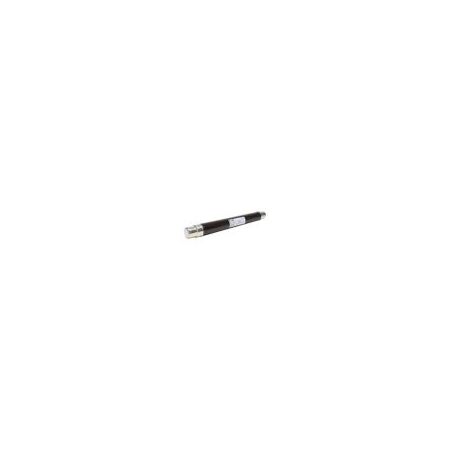

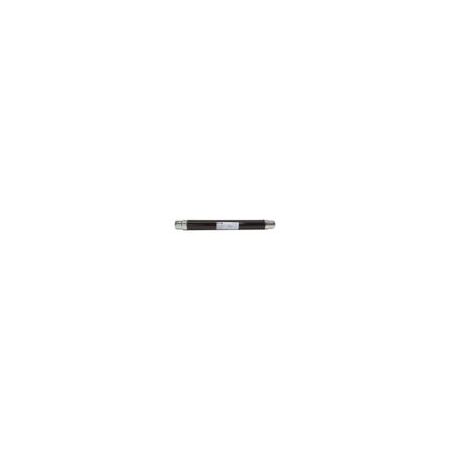

Medium Voltage DIN Fuse 31.5A | 24kV AC | 50kA Breaking Capacity | Clip-in Mounting by Eaton
This medium voltage DIN fuse features a 31.5A amperage rating and 24kV AC voltage, making it ideal for transformer protection in industrial settings. With a breaking capacity of 50kA and a convenient clip-in mounting method, it ensures reliable performance and safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Medium Voltage DIN Fuse 31.5A | 24kV AC | 50kA Breaking Capacity | Clip-in Mounting by Eaton
Brand: Eaton
SKU: 24TDMEJ31-5
Alternatively Known As: Medium Voltage DIN Fuse, Resin Seal Fuse 24kV, 31.5 Amp DIN Fuse, Transformer Protection Fuse
Technical Specifications
- Amperage Rating: 31.5 A
- Voltage Rating: 24 kV AC
- Fuse Size: 51 x 442 mm
- Breaking Capacity: 50 kA
- Fuse Indicator: With Striker
- Mounting Method: Clip-in
- Resistance: 46.8 Ohms
- Watt Losses: 59 W
- Interrupt Rating: 50 kAIC
- Performance Category: Back-up according to IEC 60282-1
- Rated Frequency: 50 Hz
- Construction Size: 51 x 442 mm
- Fuse Type: TDMEJ
- Barrels: 1
- Pre arc (I2T): 1.4 x 1000
- Installation Technique: Air
- Dimensions (H x L x W): 51mm x 442mm x 51mm
- Weight: 2.274 kg
Key Features
- Medium voltage DIN fuse with 31.5 A amperage rating
- AC voltage rating of 24 kV
- Fuse indicator with striker for easy status checking
- Breaking capacity of 50 kA
- Class back-up fuse type TDMEJ
- Clip-in mounting method
- Standard packaging type
Professional Installation Requirements
- Installation should be performed by a qualified electrician experienced with medium voltage equipment to ensure safety and compliance with electrical standards.
Applications
- Primary side transformer protection
- Transformer protection for indoor or outdoor use
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable resin seal construction reduces environmental contamination risk
- High breaking capacity enhances electrical system safety and reliability
Warranty Information
Warranty details available upon request from Eaton or authorized distributors.
Available Now
The Eaton 24KV 31.5Amp 2" DIN Resin Seal Fuse is available for immediate purchase, ideal for transformer protection in industrial and utility applications.
