Trade Discount 20%

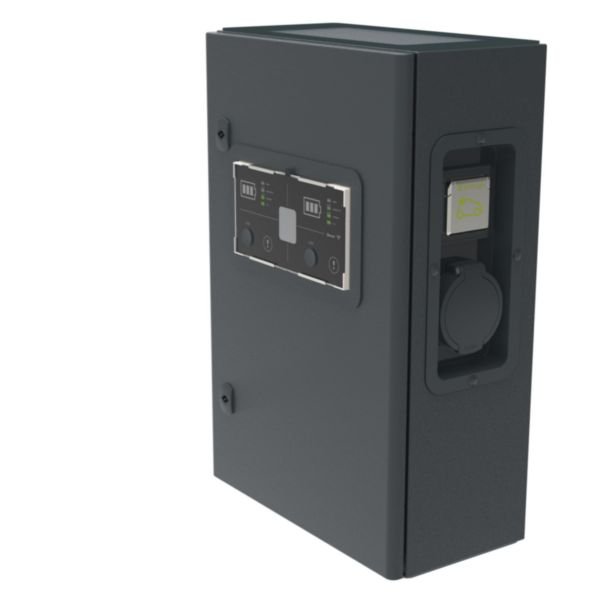

Metal Charging Station Green'up Premium | Dual Charging Points | 7.4kW Power | IP55 Protection | @EA of 1 | by Legrand
The Metal Charging Station Green'up Premium is designed for dual electric vehicle charging, featuring 7.4kW power and robust IP55 protection. Ideal for both residential and commercial applications, this station supports Mode 2 and Mode 3 charging, ensuring efficient and safe charging for two vehicles simultaneously. With Bluetooth communication for easy configuration and a durable steel housing, it's the perfect solution for modern EV charging needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Metal Charging Station Green'up Premium | Dual Charging Points | 7.4kW Power | IP55 Protection | @EA of 1 | by Legrand
Brand: Legrand
SKU: 058044
Alternatively Known As: EV Charging Station, Electric Vehicle Charger, Dual EV Charger, Green'up Premium EV Charger, Legrand EV Charging Station
Technical Specifications
- Nominal connection power: 7.4 kW per charging point
- Number of charging units: 2
- Installation side connection model: Single phase
- Housing material: Steel
- Degree of protection: IP55
- Impact strength: IK10
- Operating temperature range: -25 to 50 °C
- Storage temperature range: -25 to 70 °C
- Nominal voltage: 220-240 V
- Communication: Bluetooth, OCPP 1.6J
- Programmable: Yes
- Number of household socket outlets: 2
- With miniature circuit breaker (MCB): Yes
- Application name: EV Charge
- Dimensions (H x L x W): 740mm x 243mm x 430mm
- Weight: 25 kg
Key Features
- Dual charging points for simultaneous charging of two electric vehicles
- Local wireless communication via Bluetooth for configuration and control via smartphone app
- Remote IP wireless communication capability with optional communication kit
- Adjustable power locally or remotely through app or web interface
- Restricted access via optional RFID badge reader
- Robust steel housing with IP55 protection and IK10 impact resistance
- Single-phase installation with nominal power of 7.4 kW per charging point
- Supports Mode 2 and Mode 3 charging
- Equipped with miniature circuit breaker (MCB) for safety
- Programmable and interoperable with OCPP 1.6J protocol
Professional Installation Requirements
- Professional installation by a licensed electrician is required to ensure compliance with electrical safety standards and proper integration with existing electrical infrastructure.
Applications
- Residential electric vehicle charging
- Commercial electric vehicle charging stations
- Public and private parking areas for EVs
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Supports electric vehicle adoption reducing fossil fuel consumption
- Energy-efficient charging with adjustable power settings
- Durable construction reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty terms.
Available Now
The Legrand Metal Charging Station Green'up Premium 1Ph for 2 Electric Cars is available for immediate purchase, ideal for residential and commercial electric vehicle charging applications.
