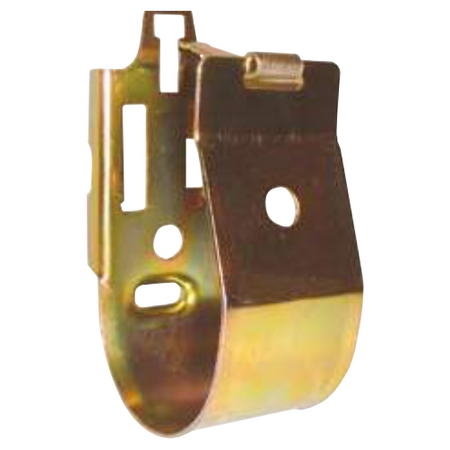

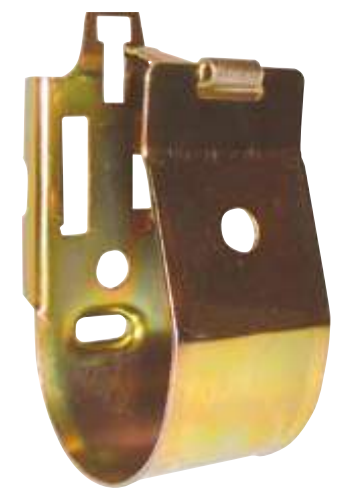

Metal Hanger | Zinc Passivated Steel | Supports M8 & M10 Studding | 1000°C Temperature Resistance | by Aspen Pumps
The Metal Hanger is designed for reliable support of air conditioning line sets in both residential and commercial HVAC installations. Made from zinc passivated mild steel, it withstands high temperatures up to 1000°C and fits M8 and M10 studding, making it ideal for efficient pipe support in mechanical and plumbing systems. This hanger avoids the need for cable trays, ensuring a streamlined installation process.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Metal Hanger | Zinc Passivated Steel | Supports M8 & M10 Studding | 1000°C Temperature Resistance | by Aspen Pumps
Brand: Aspen Pumps
SKU: B6494
Alternatively Known As: Air Conditioning Pipe Support Clip, HVAC Line Set Hanger, Zinc Passivated Pipe Clip
Technical Specifications
- Material: Zinc passivated mild steel
- Maximum temperature resistance: 1000°C
- Fits studding sizes: M8 and M10
- Maximum recommended distance per clip: 1.2 meters
- Pipe sizes supported: Liquid 5/8 inch, Gas 1 1/8 inch
- Dimensions (H x L x W): 50mm x 100mm x 100mm
- Weight: 0.3 kg
Key Features
- Fits on both M8 and M10 studding
- Rapid 2 pipe installation
- Avoids the need for cable trays
- Zinc passivated to resist corrosion
- Suitable for high temperature environments up to 1000°C
- Supports maximum recommended distance per clip of 1.2m
Professional Installation Requirements
- Installation by a qualified HVAC or mechanical professional is recommended to ensure compliance with fire and building regulations.
Applications
- Supporting air conditioning line set pairs in residential and commercial HVAC installations
- Pipe support in mechanical and plumbing systems
- Ideal for use in fire regulation compliant installations
Standards & Compliance
- Complies with AS/NZS 1680 – Interior Lighting and Workplace Illumination
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Zinc passivation extends product life reducing replacement frequency and waste
- Supports efficient HVAC installations which can improve energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to Aspen Pumps for specific warranty details.
Available Now
The Aspen Pumps Metal Hanger is available for immediate purchase, ideal for HVAC and pipe support applications.
