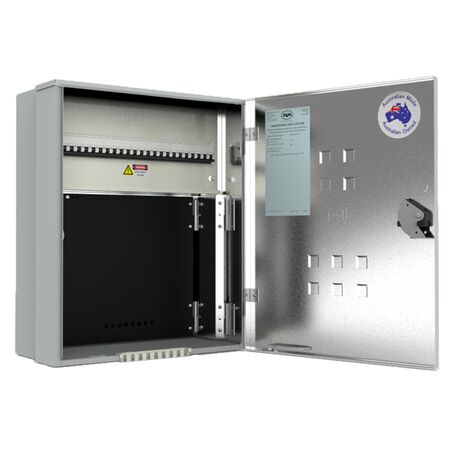

Meterbox SA Rebated Type 1 24P | Bottom DIN | Light Grey by B&R Enclosures
Meterbox SA rebated type 1 with 24-pole bottom DIN—ideal for residential and light commercial metering installations. Built for easy wall recessing, with durable light grey powdercoated galvanised steel.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Meterbox SA rebated Type 1 24P Bottom DIN
Brand: B&R Enclosures
SKU: 1DIN24R
Alternatively Known As: SA Rebated Metering Enclosure, Light Grey Metering Box
Technical Specifications
- Part Number: 1DIN24R
- To suit metering: Type 1
- DIN: 24-pole
- Material: 1.0mm galvanised steel
- Powdercoating: Light grey RAL7035
- IP Rating: IP23
- Dimensions (H x L x W): 600mm x 265mm x 470mm
- Weight: 10 kg
Key Features
- Standard SA rebate to allow enclosure to be recessed into the wall easily.
- Provision to fit ES coin lock (CL) to door of the enclosure.
- Includes neutral links and earth.
- Earthing provision: M8 bolt welded to the body on a standoff.
- Manufactured from 1.0mm galvanised steel to Z275.
- Powdercoated light grey RAL7035.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Domestic: Residential metering installations
- Commercial: Light commercial metering installations
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Durable galvanised steel construction reduces the need for frequent replacements.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The South Australia Rebated Sides is available now for immediate purchase. Ideal for domestic and light commercial metering installations.
