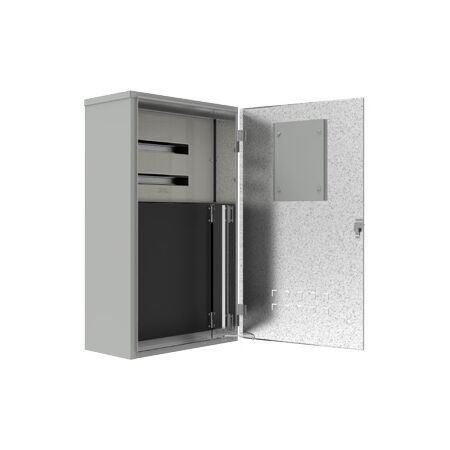

Metering Enclosure with Pre-Drilled Panel | IP23 Rated | Light Grey by B&R Enclosures

SKU: MD0102F
$222.10 List price: $279.10
+
Metering enclosure with pre-drilled panel and IP23 rating—ideal for domestic and light commercial installations. Built for durability with 1.0mm galvanised steel and powdercoated light grey finish.

Product Name/Title: Frame S/Board+Pre-Drilled Panel+R/Back

Brand: B&R Enclosures

SKU: MD0102F

Alternatively Known As: Metering Enclosure, MD Series Enclosure, Bren Meter Box

Technical Specifications
  • Material: 1.0mm galvanised steel to Z275
  • Finish: Powdercoated Light Grey RAL7035
  • IP Rating: IP23
  • Dimensions (H x L x W): 375mm x 107mm x 215mm
  • Weight: 2.5 kg
Key Features
  • SIR Approval #SIR9640597B
  • Designed for both single and multi-phase installations
  • Suits bottom connected meters
  • No sharp edges
  • Improved strength
  • Manufactured from 1.0mm galvanised steel to Z275
  • Powdercoated Light Grey RAL7035
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Domestic: Homes and residential buildings
  • Commercial: Light commercial metering installations
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Victoria MD Series Metering Installation Enclosure is available now for immediate purchase. Ideal for domestic and light commercial applications.

Specification Sheet (, 439 Kb) [Download]

Specification Sheet (, 441 Kb) [Download]
