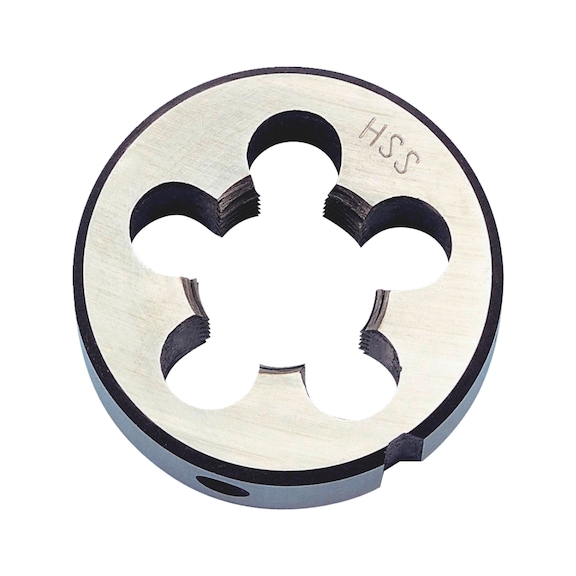

Metric Fine Thread Die MF10 | HSS Round Die | Two-Sided Cut | High Edge Retention | by Wurth
The Metric Fine Thread Die MF10 is designed for precision threading in steel and cast iron, featuring a high-speed steel construction for durability. With a unique two-sided cut for efficient threading and excellent chip removal, this tool is perfect for trained machinists and technicians in industrial settings. Ideal for producing metric ISO fine threads, it ensures optimal thread quality and safety during use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Metric Fine Thread Die MF10 | HSS Round Die | Two-Sided Cut | High Edge Retention | by Wurth
Brand: Wurth
SKU: 652101
Alternatively Known As: Metric Fine Thread Die, MF10 Thread Cutter, HSS Round Die, Thread Cutting Tool
Technical Specifications
- Type description: For metric ISO fine thread DIN 13
- Cutting material: HSS (High-Speed Steel)
- Surface: Plain
- Thread type: Metric fine thread
- Form: B (closed, pre-slotted design)
- Tolerance class: 6g
- Thread type x nominal diameter: MF10
- Pitch: 1.0 mm
- Outer diameter: 30 mm
- Height: 11 mm
- Material to be processed: Steel up to 850 N/mm² strength, Cast iron
- Dimensions (H x L x W): 11mm x 30mm x 30mm
- Weight: 0.2 kg
Key Features
- Two-sided cut allows use on both sides and threading in one process
- Easy cutting with excellent chip removal in cutting direction
- High edge retention for durability and precision
Professional Installation Requirements
- Professional use by trained machinists or technicians is recommended for optimal thread quality and safety.
Applications
- Machining: Production of metric ISO fine threads in steel and cast iron
- Industrial: Thread cutting in manufacturing and repair workshops
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable HSS material reduces frequency of replacement and waste
- Efficient cutting reduces energy consumption during machining
Warranty Information
Standard manufacturer warranty applies; please refer to Wurth's warranty policy.
Available Now
The Wurth Round Die for Metric ISO Fine Threads MF10 is available now for immediate purchase. Ideal for machining and industrial thread cutting applications.
