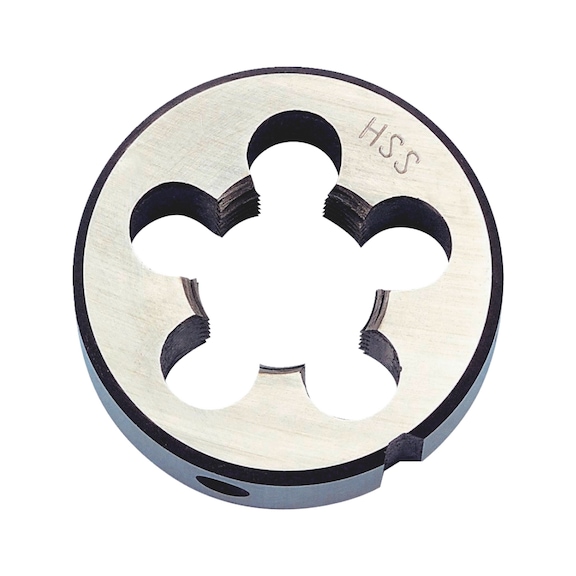

Metric Thread Cutter M16 | High-Speed Steel | Two-Sided Cut | by Wurth
The Metric Thread Cutter M16 is designed for precision cutting of standard metric ISO threads in steel and cast iron. Made from durable high-speed steel (HSS), this threading die features a two-sided cut for efficient operation and excellent chip removal. Ideal for trained machinists and professionals, it ensures high edge retention and optimal performance in industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Metric Thread Cutter M16 | High-Speed Steel | Two-Sided Cut | by Wurth
Brand: Wurth
SKU: 65216
Alternatively Known As: Metric Thread Cutter M16, Round Thread Die M16, HSS Threading Die
Technical Specifications
- Type description: For metric ISO thread DIN 13
- Cutting material: High-Speed Steel (HSS)
- Surface finish: Plain
- Thread type: Metric thread
- Form: B (closed, pre-slotted design)
- Tolerance class: 6g
- Thread size: M16 x 2.0 mm pitch
- Outer diameter: 45 mm
- Height: 18 mm
- Material to be processed: Steel up to 850 N/mm² strength, Cast iron
- Dimensions (H x L x W): 18mm x 45mm x 45mm
- Weight: 0.2 kg
Key Features
- Two-sided cut allows use on both sides
- Threads can be cut in one process
- Easy cutting with excellent chip removal in cutting direction
- High edge retention for durability
Professional Installation Requirements
- Use by trained machinists or professionals with appropriate threading equipment is recommended for optimal results and safety.
Applications
- Machining: Cutting standard metric ISO threads in steel and cast iron
- Industrial: Thread production for mechanical and engineering applications
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable HSS material reduces frequency of replacement, minimizing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth Round Die M16 Metric Thread Cutter is available for immediate purchase, ideal for machining and industrial thread cutting applications.
