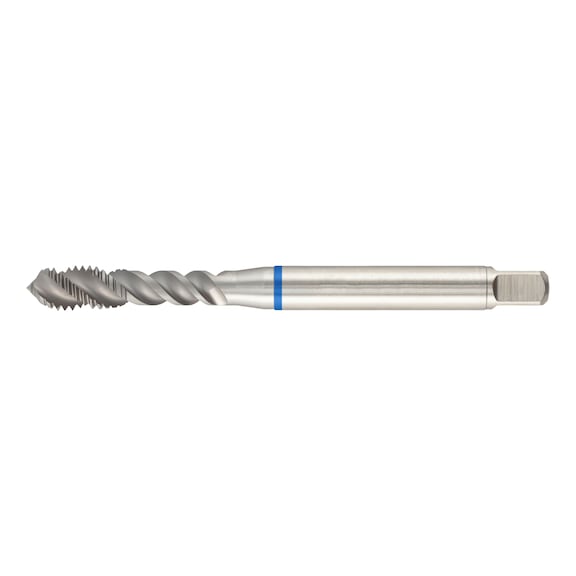

Metric Thread Cutter M4 | High-Speed Steel | Vario Geometry | Enhanced Cutting Edge | by Wurth
The Metric Thread Cutter M4 is designed for precision machining in steel materials, featuring a newly developed Vario geometry for optimized cutting and a multi-stage finishing process for enhanced edge preparation. Ideal for trained machinists, this tap ensures improved performance in creating blind holes, making it perfect for general structural steels and non-alloyed tempering steels.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Metric Thread Cutter M4 | High-Speed Steel | Vario Geometry | Enhanced Cutting Edge | by Wurth
Brand: Wurth
SKU: 653800400
Alternatively Known As: Metric Thread Cutter M4, Machine Tap M4, Steel Thread Cutter, High-Speed Steel Tap
Technical Specifications
- Thread type: Metric thread
- Material to be processed: Steel
- Hole type: Blind hole up to 2.5xD
- Suitable for machine type: Milling/drill center, Pedestal drilling machine
- Quality: ZEBRA-Premium
- Thread type x nominal diameter: M4
- Pitch: 0.7 mm
- Length: 63 mm
- Shank diameter: 4.5 mm
- Size of square: 3.4 mm
- DIN: 371
- Cutting material: HSCo
- Surface: Plain
- Form: C
- Core hole diameter: 3.3 mm
- Twist angle: 45° Vario
- Shank style: Cylindrical with square drive
- Tolerance of screw taps: ISO 2X (6HX)
- Suitable for tensile strength up to: 1200 N/mm²
- Service life (points system): 3 of 4 points
- Trueness to gauge (points system): 4 of 4 points
- Versatility (points system): 2 of 4 points
- Cutting behaviour (points system): 3 of 4 points
- Chip formation (points system): 3 of 4 points
- Material of sub-group: General structural steels, Non-alloyed tempering steels
- Dimensions (H x L x W): 63mm x 63mm x 4.5mm
- Weight: 0.1 kg
Key Features
- Newly developed Vario geometry for optimized cutting
- Multi-stage finishing process for enhanced cutting edge preparation
- Angled threaded part for improved performance
- Cutting edge geometry precisely tailored to steel materials
- Up to 30% longer service life compared to conventional plain machine taps
- Exclusive availability from Wurth
- Product packaging made from 100% PCR recycled plastic and fully recyclable
Professional Installation Requirements
- Use by trained machinists or operators with appropriate machine tools; follow safety and operational guidelines for machining steel materials.
Applications
- Machining: Thread cutting in general structural steels and non-alloyed tempering steels
- Suitable for use with milling/drill centers and pedestal drilling machines
- Ideal for creating blind holes in steel materials
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Packaging made from 100% post-consumer recycled plastic
- Fully recyclable product packaging reduces environmental impact
Warranty Information
Wurth provides a standard warranty against manufacturing defects; please refer to Wurth's official warranty policy for details.
Available Now
The Wurth Metric Thread Cutter M4 is available for immediate purchase, ideal for precision machining applications in steel materials.
