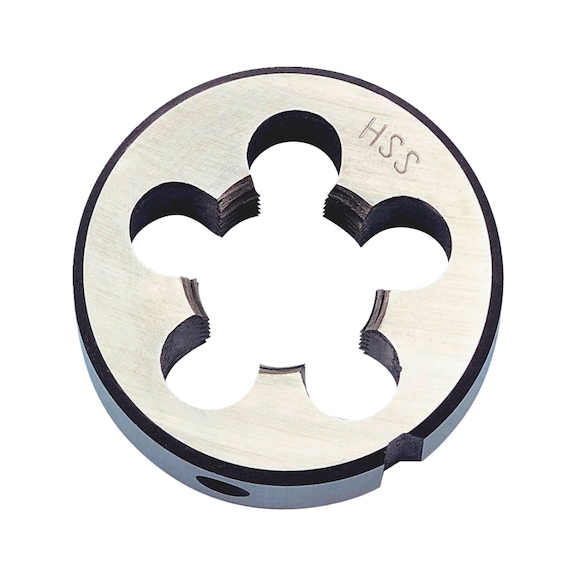

Metric Thread Cutter M5 | High-Speed Steel | Two-Sided Cut | Excellent Chip Removal | by Wurth

BRAND: Wurth
SKU: 6525
$82.90 List price: $104.20
+ −
30 Days Return Delivery Options
The Metric Thread Cutter M5 is crafted from high-speed steel, designed for cutting standard metric ISO threads in steel and cast iron. With a two-sided cut feature, it allows for efficient threading in one process, making it ideal for trained machinists and professionals. Enjoy excellent chip removal and high edge retention for durability in industrial applications.

Product Name/Title: Metric Thread Cutter M5 | High-Speed Steel | Two-Sided Cut | Excellent Chip Removal | by Wurth

Brand: Wurth

SKU: 6525

Alternatively Known As: Metric Thread Cutter M5, Round Die M5, HSS Threading Die

Technical Specifications
  • Type description: For metric ISO thread DIN 13
  • Cutting material: High-Speed Steel (HSS)
  • Surface: Plain
  • Thread type: Metric thread
  • Form: B (closed, pre-slotted design)
  • Tolerance class: 6g
  • Thread type x nominal diameter: M5
  • Pitch: 0.8 mm
  • Outer diameter: 20 mm
  • Height: 7 mm
  • Material to be processed: Steel up to 850 N/mm² strength, Cast iron
  • Dimensions (H x L x W): 7mm x 20mm x 20mm
  • Weight: 0.1 kg
Key Features
  • Two-sided cut allows use on both sides
  • Threads can be cut in one process
  • Easy cutting with excellent chip removal in cutting direction
  • High edge retention for durability
Professional Installation Requirements
  • Use by trained machinists or professionals with appropriate threading equipment is recommended for optimal results and safety.
Applications
  • Machining: Cutting standard metric ISO threads in steel and cast iron
  • Industrial: Thread production for mechanical and engineering applications
Standards & Compliance
  • Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Durable HSS material reduces frequency of replacement and waste
  • Efficient cutting reduces energy consumption during machining
Warranty Information

Wurth standard warranty against manufacturing defects applies.

Available Now

Wurth Round Die M5 Thread Cutter is available for immediate purchase, ideal for machining and industrial thread cutting applications.
