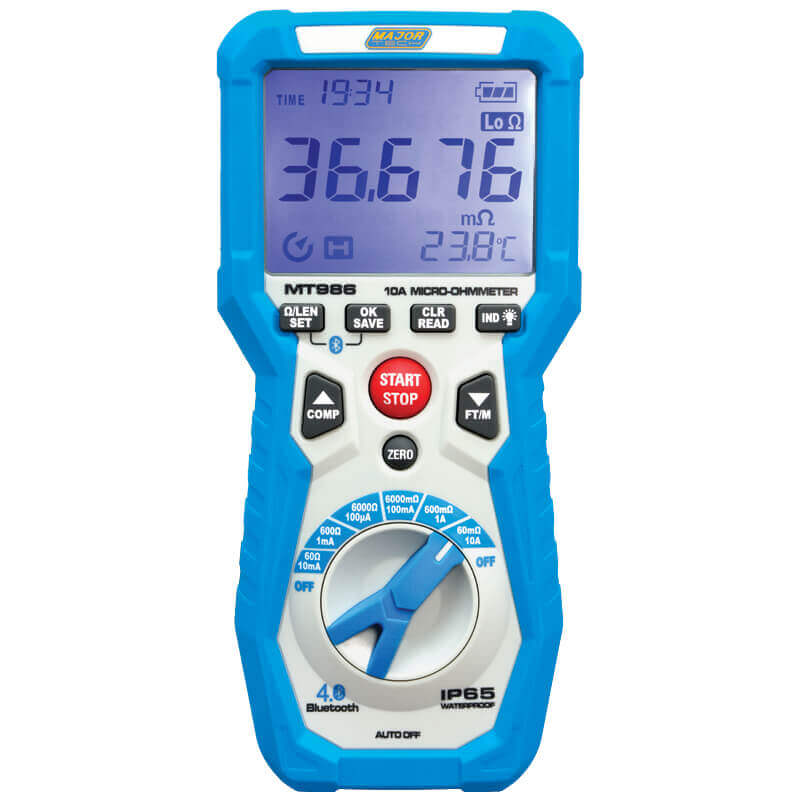

Micro Ohm Meter 10A MajorTech

BRAND: Major Tech
SKU: MT986
$1,130.90 List price: $1,507.90
+ −
30 Days Return Electricians Unlock Trade Access
MajorTech micro ohm meter features 10A test current and low resistance measurement. Ideal for testing joints, bonds and connections.

Alternatively Known As: 10A Micro-Ohmmeter, Digital Micro-Ohm Meter, Transformer DC Low-Resistance Tester, 4-Wire Resistance Tester

Technical Specifications
  • Test Current: 10A constant current
  • Resistance Range: 0.001 mΩ to 6 kΩ
  • Measurement Method: 4-wire Kelvin test
  • Cable Length Measurement: 0.1 m to 30,000 m
  • Temperature Measurement Range: -5°C to 50°C
  • Data Storage: 999 measurement sets
  • Display: 99999-count LCD
  • Bluetooth: Version 4.0, compatible with Android and iOS devices
  • Ingress Protection: IP65 dust and water protection
  • Battery: 7.4 V, 2600 mAh rechargeable lithium battery
  • Automatic Power Off: Approximately 15 minutes, defeatable
  • Included Accessories: Carrying case, two Kelvin clips, copper rod, charger and instruction manual
  • Dimensions (H x L x W): 67mm x 212mm x 100mm
  • Weight: 0.6 kg
Key Features
  • Delivers a 10A constant test current for low-resistance measurements
  • Four-wire Kelvin measurement method reduces the influence of test lead and contact resistance
  • Suitable for checking electrical joints, bonds, welding points and power distribution connections
  • Measures motor windings, small transformer windings and metal coating resistance
  • Stores up to 999 measurement results for later review
  • Bluetooth connectivity enables data transfer to the MajorTech Meter-X mobile application
  • Rechargeable battery supports portable, on-site testing
  • IP65-rated enclosure provides protection against dust and water ingress
Professional Installation Requirements
  • No fixed installation is required. Testing should be performed by a suitably trained electrical or technical professional on isolated, de-energised equipment, following the equipment manufacturer's safety procedures and applicable electrical safety requirements.
Applications
  • Testing electrical joints, bonds and connections
  • Checking busbar and lead connections in power distribution cabinets
  • Testing welding points and bonding continuity
  • Measuring motor and small transformer winding resistance
  • Checking metal coating resistance
  • Troubleshooting low-resistance connections in restricted or narrow spaces
  • On-site cable length estimation and temperature measurement
Standards & Compliance
  • AS/NZS 61010.1 is the relevant Australian/New Zealand safety standard family for electrical measuring equipment; product-specific Australian conformity is not stated on the manufacturer's product page.
Environmental Benefits
  • Rechargeable lithium battery reduces reliance on disposable batteries during repeated field testing
  • Supports preventative maintenance by identifying high-resistance joints and connections before faults or energy losses develop
  • Digital data storage and Bluetooth transfer can reduce the need for paper-based test records
  • Durable IP65 construction may extend service life and reduce premature equipment replacement
Warranty Information

Two-year warranty for MajorTech test instruments from the date of shipment or delivery, subject to registration by the original purchaser and the manufacturer's warranty terms.

Available Now

Available through MajorTech and authorised Australian electrical test-equipment distributors.
