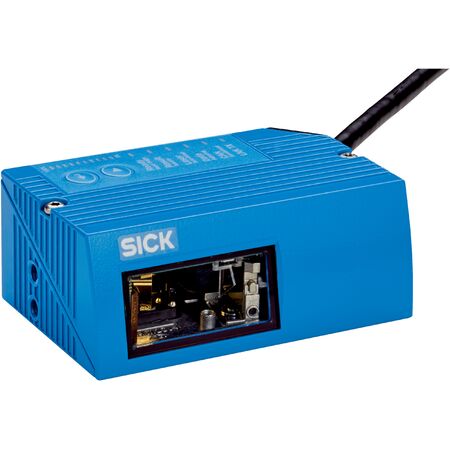

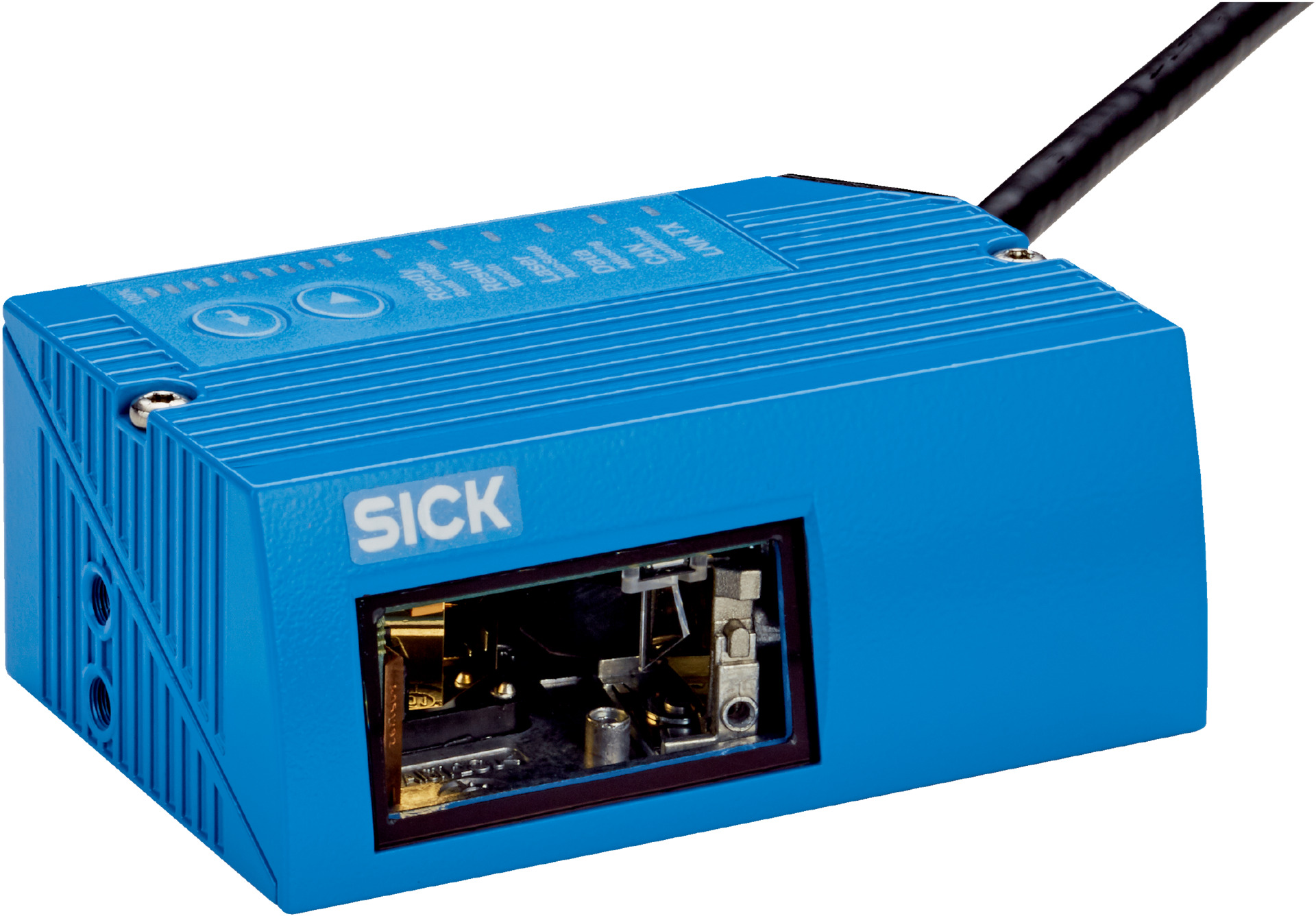

Mid Range Barcode Scanner SICK CLV631-1000 | IP65 Rated | 400-1200 Hz Scanning Frequency | by SICK
The SICK CLV631-1000 Mid Range Barcode Scanner is designed for efficient industrial automation, featuring a robust aluminum housing and IP65 rating. With a scanning frequency of 400 to 1200 Hz and the ability to read various 1D barcodes, it's perfect for logistics, manufacturing, and quality control applications. This scanner ensures reliable performance and durability, making it an essential tool for any barcode reading task.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Mid Range Barcode Scanner SICK CLV631-1000 | IP65 Rated | 400-1200 Hz Scanning Frequency | by SICK
Brand: SICK
SKU: 1041980
Alternatively Known As: SICK CLV631, CLV631 Raster Scanner, Mid Range Barcode Scanner, Industrial Barcode Reader
Technical Specifications
- Version: Mid Range
- Connection type: Cable with 1 x 15-pin D-Sub HD male connector (0.9 m)
- Reading field: Front
- Sensor type: Raster scanner
- Optical focus: Fixed focus
- Light source: Light spot, laser, visible red, 655 nm
- Laser class: 2 (complies with IEC 60825-1:2014+A11:2021)
- Aperture angle: ≤ 50°
- Reading distance: 90 mm to 450 mm
- Scanning frequency: 400 Hz to 1200 Hz
- Code resolution: 0.25 mm to 0.5 mm
- Raster height and lines: 15 mm, 8 lines at 200 mm
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 5 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65 (EN 60529)
- Protection class: III (EN 61140)
- Weight: 320 g with connecting cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, and others
- Number of codes per scan: 1 to 20 (standard decoder)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: 5,000 (500 for multiplexer function)
- Interfaces: PROFINET, EtherCAT, Serial (RS-232, RS-422, RS-485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 4
- Digital outputs: 4
- Optical indicators: 6 LEDs
- Acoustic indicators: Beeper/buzzer
- Control elements: 2 buttons
- Configuration software: SOPAS ET
- Memory card: Optional MicroSD
- Dimensions (H x L x W): 38mm x 61mm x 96mm
- Weight: 0.32 kg
Key Features
- Mid Range raster scanner with fixed optical focus
- Reads 1D barcodes including Code 39, Code 128, GS1 DataBar and more
- Light spot laser source, visible red at 655 nm
- High scanning frequency from 400 Hz to 1200 Hz
- Robust aluminum die cast housing with IP65 rating
- Multiple interface options including PROFINET, EtherCAT, CAN, and Serial
- 6 LED optical indicators and acoustic beeper for status feedback
- MicroSD memory card support for configuration
- Complies with laser safety class 2 standards
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality control and traceability systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption at 5 W supports energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV631-1000 Mid Range Raster Scanner is available for immediate purchase, ideal for industrial barcode reading and automation applications.
