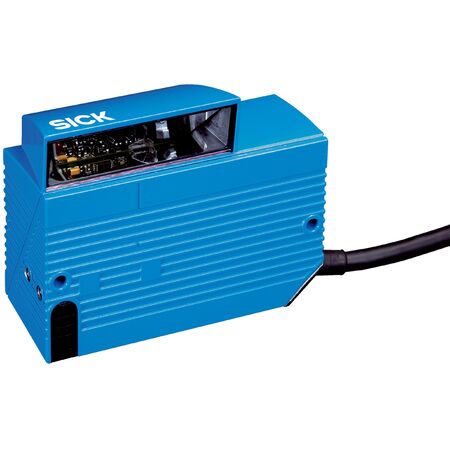

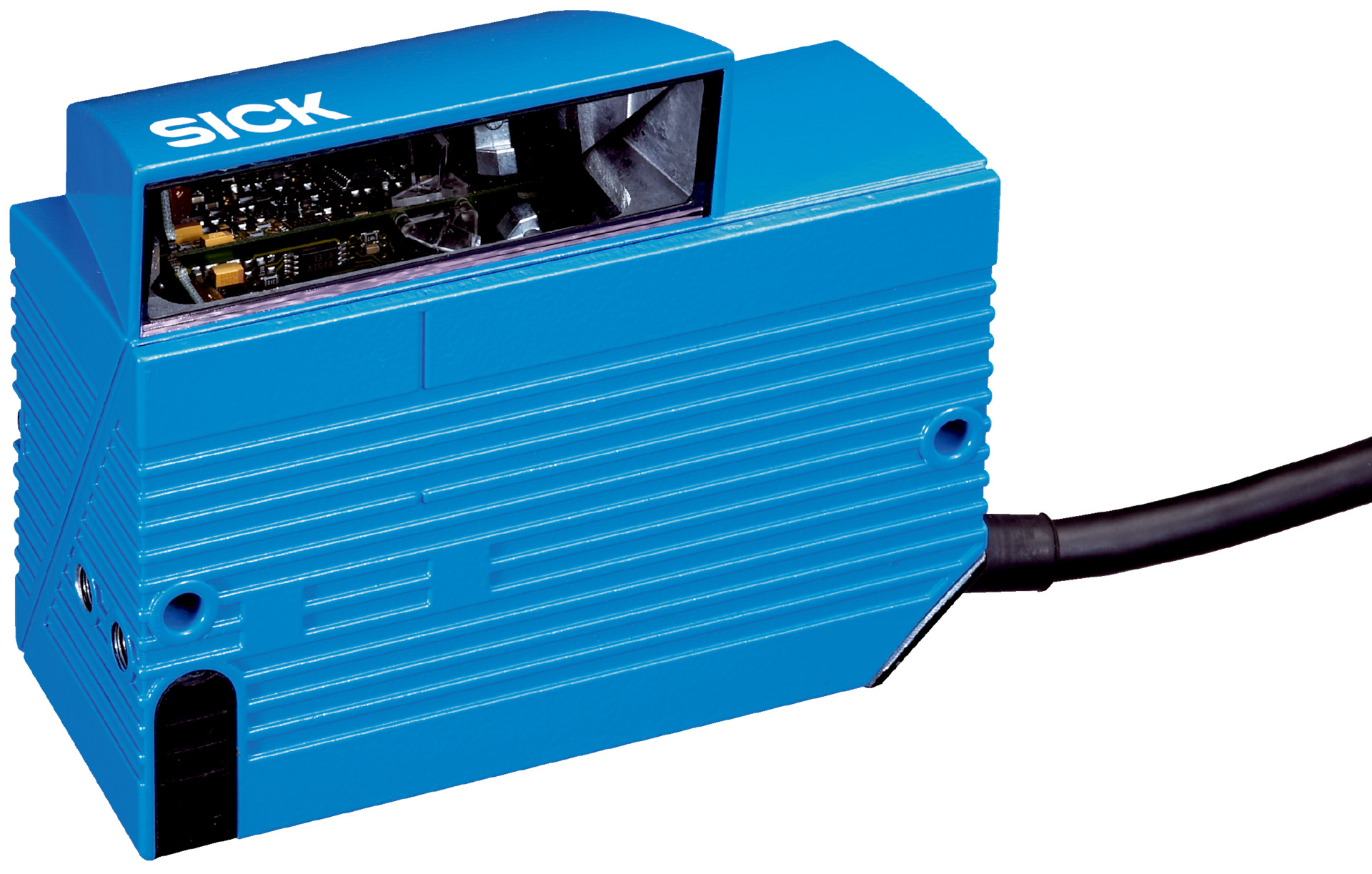

Mid Range Barcode Scanner SICK CLV631-3000 | IP65 Rated | 400-1200 Hz Scanning Frequency | by SICK
The SICK CLV631-3000 Mid Range Barcode Scanner excels in industrial automation, reading 1D barcodes like Code 39 and Code 128 with a high scanning frequency of 400 to 1200 Hz. Its robust aluminum die cast housing and IP65 protection make it ideal for logistics, manufacturing, and quality assurance applications, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Mid Range Barcode Scanner SICK CLV631-3000 | IP65 Rated | 400-1200 Hz Scanning Frequency | by SICK
Brand: SICK
SKU: 1041984
Alternatively Known As: SICK CLV631, CLV631 Raster Scanner, Mid Range Barcode Scanner, Industrial Barcode Reader
Technical Specifications
- Connection type: Cable with 1 x 15-pin D-Sub HD male connector (0.9 m)
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 5 W
- Housing material: Aluminum die cast
- Enclosure rating: IP65 (EN 60529)
- Protection class: III (EN 61140)
- Laser class: 2, compliant with IEC 60825-1:2014+A11:2021
- Reading distance: 74 mm to 412 mm
- Scanning frequency: 400 Hz to 1200 Hz
- Code resolution: 0.25 mm to 0.5 mm
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, and others
- Interfaces: PROFINET, EtherCAT, CAN, CANopen, PROFIBUS DP, Serial (RS-232, RS-422, RS-485)
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Dimensions (H x L x W): 38mm x 80mm x 96mm
- Weight: 0.34 kg
Key Features
- Mid range raster scanner with fixed optical focus
- Reads 1D barcodes including Code 39, Code 128, GS1 DataBar, and more
- Reading field side angle of 105° with circular laser spot
- High scanning frequency from 400 Hz to 1200 Hz
- Robust aluminum die cast housing with IP65 protection
- Multiple interface options including PROFINET, EtherCAT, CAN, and Serial
- Integrated LEDs and acoustic indicators for status feedback
- Supports up to 50 codes per reading interval and 5000 characters
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial electrical and communication standards to ensure proper setup and compliance.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality assurance and product tracking
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of 5 W supports energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK CLV631-3000 Mid Range Raster Scanner is available for immediate purchase, ideal for industrial barcode scanning applications requiring reliable and versatile performance.
