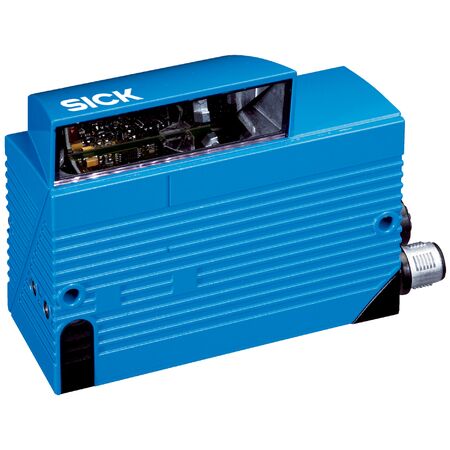

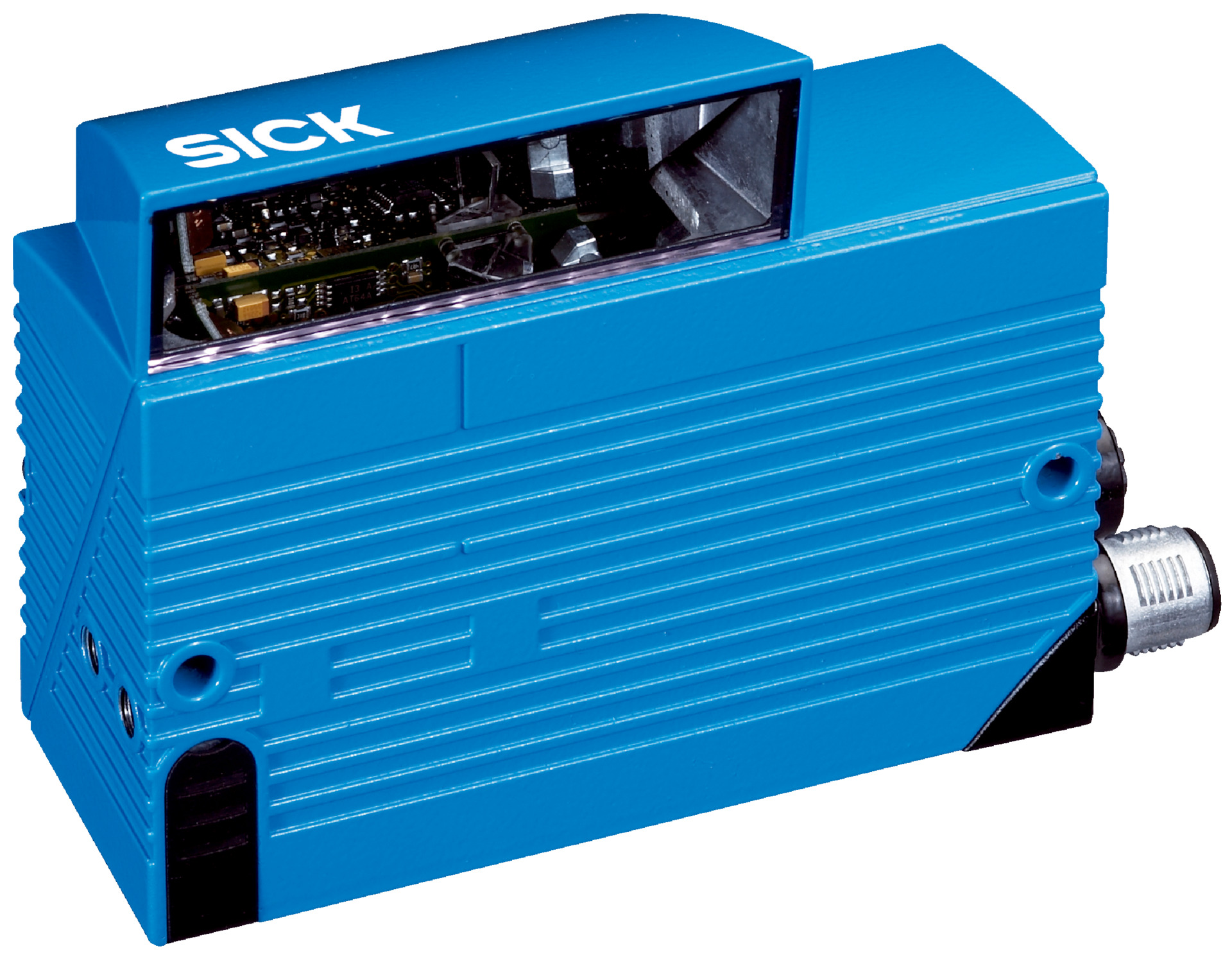

Mid Range Ethernet Raster Scanner | 105° Reading Field | IP65 Rated | by SICK
The Mid Range Ethernet Raster Scanner is designed for efficient barcode reading in industrial automation. With a 105° reading field and high scanning frequency of 400 Hz to 1200 Hz, it excels in logistics and manufacturing applications. Built with a robust aluminum housing and IP65 rating, this scanner ensures durability and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Mid Range Ethernet Raster Scanner | 105° Reading Field | IP65 Rated | by SICK
Brand: SICK
SKU: 1041985
Alternatively Known As: SICK CLV631 Raster Scanner, SICK Mid Range Barcode Scanner, Ethernet Barcode Reader, Industrial Raster Scanner
Technical Specifications
- Version: Mid Range
- Connection type: Ethernet, 2 x M12 cylindrical connectors
- Reading field: Side (105°)
- Sensor type: Raster scanner
- Optical focus: Fixed focus
- Light source: Visible red laser, 655 nm, circular spot
- Laser class: Class 2, compliant with IEC 60825-1:2014+A11:2021
- Aperture angle: ≤ 50°
- Reading distance: 74 mm to 412 mm
- Scanning frequency: 400 Hz to 1200 Hz
- Code resolution: 0.25 mm to 0.5 mm
- Raster height and lines: 15 mm, 8 lines at 185 mm distance
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 5 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65 (EN 60529)
- Protection class: III (EN 61140)
- Weight: 270 g without cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, and more
- Number of codes per scan: 1 to 20 (standard decoder)
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP™, EtherCAT®, Serial (RS-232, RS-422, RS-485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 3
- Digital outputs: 2
- Indicators: 6 LEDs and acoustic beeper
- Configuration software: SOPAS ET
- Memory card: Optional microSD
- Dimensions (H x L x W): 38mm x 80mm x 96mm
- Weight: 0.27 kg
Key Features
- Mid range raster scanner with fixed optical focus
- Ethernet connection with multiple fieldbus options including PROFINET, EtherNet/IP™, EtherCAT®, CAN, CANopen, PROFIBUS DP
- Reading field side angle of 105° with circular red laser light spot (655 nm)
- High scanning frequency from 400 Hz to 1200 Hz
- Reads all current 1D barcode types with high resolution (0.25 mm to 0.5 mm)
- Robust aluminum die cast housing with IP65 rating
- Multiple digital and acoustic indicators for status and results
- Supports microSD memory card for configuration
- Comprehensive electromagnetic, vibration, and shock resistance
Professional Installation Requirements
- Installation by a qualified electrician or trained technician is recommended to ensure proper electrical connection and compliance with safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality assurance and traceability
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient 5 W power consumption reduces operational costs
- Durable housing and long MTBF (100,000 hours) minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV631-3120 Mid Range Ethernet Raster Scanner is available for immediate purchase, ideal for industrial barcode reading and automation applications.
