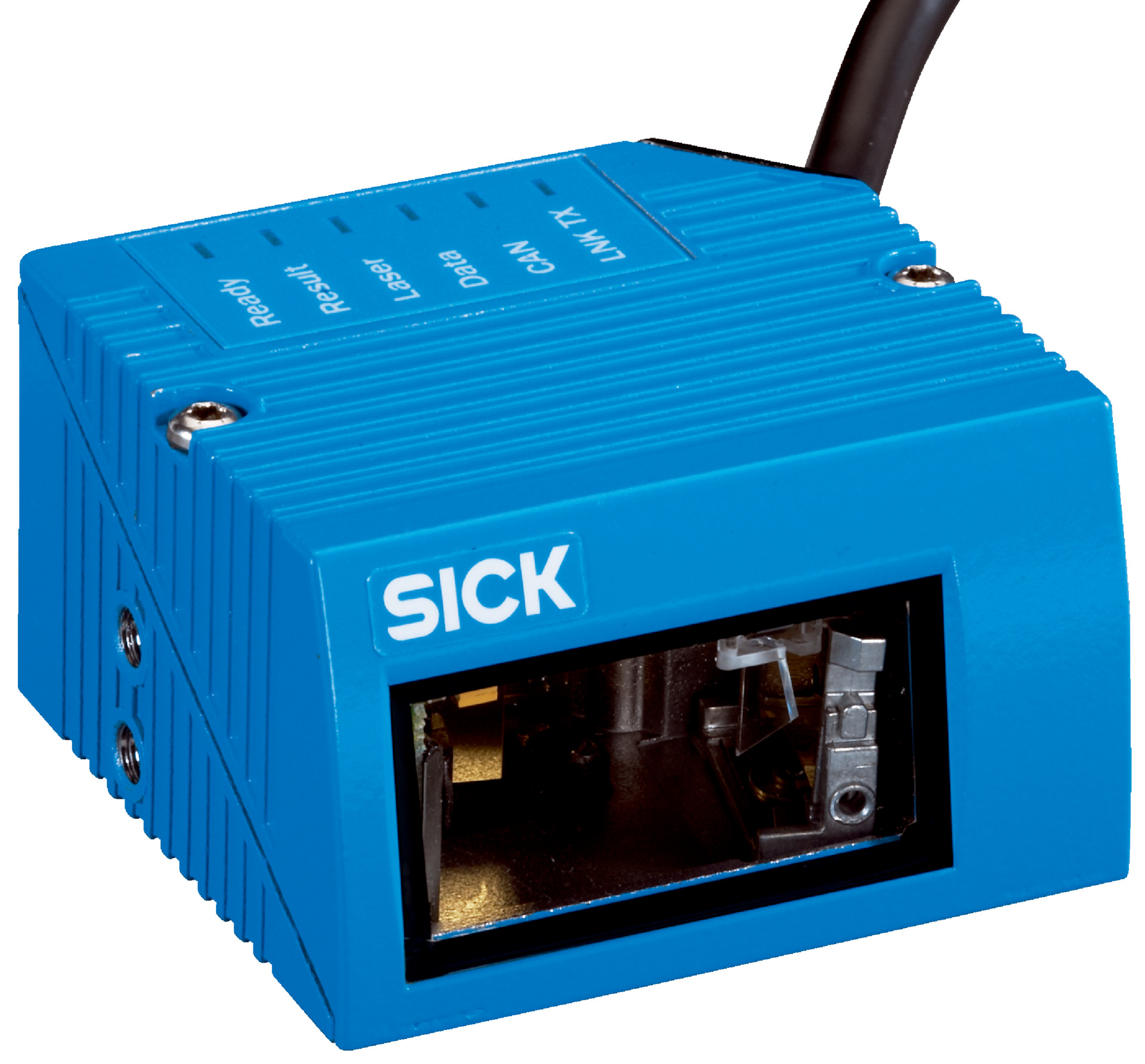

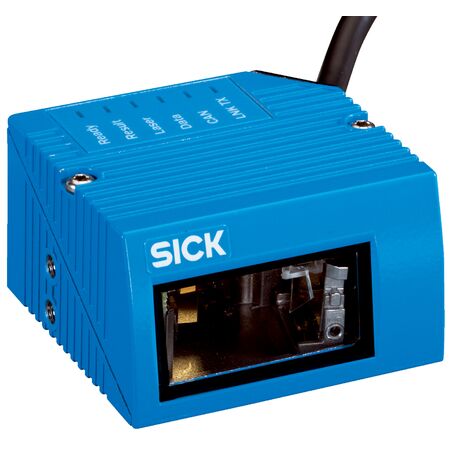

Mid Range Line Scanner CLV620-0300 | Fixed Optical Focus | IP65 Rated | by SICK
The Mid Range Line Scanner CLV620-0300 is designed for efficient barcode reading in industrial automation, logistics, and manufacturing. With a reading distance of 60 mm to 365 mm and a high scanning frequency of 400 Hz to 1200 Hz, it ensures quick and accurate data capture. Its robust aluminum housing and IP65 rating make it ideal for demanding environments, while multiple interface options provide versatile connectivity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Mid Range Line Scanner CLV620-0300 | Fixed Optical Focus | IP65 Rated | by SICK
Brand: SICK
SKU: 1053918
Alternatively Known As: SICK CLV620, CLV620 Barcode Scanner, Mid Range Line Scanner, Industrial Barcode Reader
Technical Specifications
- Version: Mid Range
- Connection type: Cable with 1 x 15-pin D-Sub HD male connector (2 m)
- Reading field: Front
- Sensor type: Line scanner
- Optical focus: Fixed focus
- Light source: Visible red laser, 655 nm
- Laser class: 2 (complies with IEC 60825-1:2014+A11:2021)
- Aperture angle: ≤ 50°
- Reading distance: 60 mm to 365 mm
- Scanning frequency: 400 Hz to 1200 Hz
- Code resolution: 0.2 mm to 1 mm
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 4.5 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65
- Protection class: III
- Weight: 225 g with cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, and others
- Number of codes per scan: 1 to 20 (standard decoder)
- Number of codes per reading interval: 1 to 50
- Number of characters per reading interval: up to 1500
- Interfaces: PROFINET, EtherCAT, Serial (RS-232, RS-422, RS-485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 4
- Digital outputs: 4
- Optical indicators: 6 LEDs
- Acoustic indicators: Beeper/buzzer
- Configuration software: SOPAS ET
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- EMC: EN 61000-6-3 / EN 61000-6-2
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Ambient light immunity: 2000 lx on barcode
- Bar code print contrast (PCS): ≥ 60%
- Dimensions (H x L x W): 38mm x 61mm x 66mm
- Weight: 0.225 kg
Key Features
- Mid range line scanner with fixed optical focus
- Reads 1D barcodes including Code 39, Code 128, GS1 DataBar, and more
- Reading distance from 60 mm to 365 mm
- High scanning frequency between 400 Hz and 1200 Hz
- Robust aluminum die cast housing with IP65 rating
- Multiple interface options including PROFINET, EtherCAT, Serial, CAN, CANopen, and PROFIBUS DP
- Laser class 2 with visible red light source at 655 nm
- 6 LED optical indicators and acoustic beeper for status feedback
- Supports up to 50 codes per reading interval and up to 1500 characters
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality control and traceability systems
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable aluminum housing extends product life reducing waste
- Low power consumption at 4.5 W supports energy efficiency
- Complies with laser safety standards minimizing environmental hazards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV620-0300 Mid Range Line Scanner Barcode Reader is available for immediate purchase, ideal for industrial automation and barcode scanning applications.
