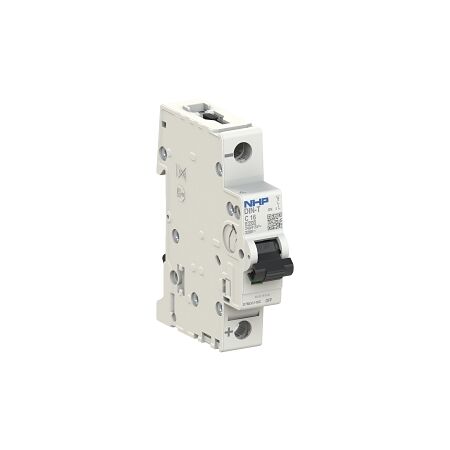

NHP DIN-T Miniature Circuit Breaker MCB DC 10kA 1 Pole 2A C Curve

Miniature Circuit Breaker 1 Pole 2A | 10kA C Curve | IP40 by NHP

BRAND: NHP

SKU: DTMDC102C

$203.70 List price: $270.50

+ −

30 Days Return Delivery Options

Miniature circuit breaker with 1 pole and 2A rated current—ideal for residential, commercial, and industrial applications. Built for safety with 10kA breaking capacity and IP40 protection.

Description
Attachments

Product Name/Title: NHP DIN-T Miniature Circuit Breaker MCB DC 10kA 1 Pole 2A C Curve

Brand: NHP

SKU: DTMDC102C

Alternatively Known As: Miniature Circuit Breaker, MCB, DC Circuit Breaker, 10kA MCB

Technical Specifications

Rated Current: 2 A
Number of Poles: 1
Trip Curve: C
Rated Voltage: 220 V
Frequency: 50-60 Hz
Voltage Type: DC
Rated Short Circuit Breaking Capacity: 10 kA
Degree of Protection: IP40
Connectable Conductor Cross Section: 0.75-35 mm² (solid core), 0.75-25 mm² (multi-wired)
Rated Insulation Voltage: 440 V
Rated Impulse Withstand Voltage: 4 kV
Ambient Temperature: -25 to 70 °C
Dimensions (H x L x W): 85mm x 75.8mm x 17.5mm
Weight: 0.2 kg

Key Features

1 Pole configuration with C Curve trip characteristic.
Rated short circuit breaking capacity of 10 kA.
IP40 protection degree for reliable performance.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes and small electrical installations
Commercial: Small businesses and office buildings
Industrial: Equipment protection in various applications

Standards & Compliance

Complies with AS/NZS 60898 and AS/NZS 60947 for safety and performance standards.

Environmental Benefits

Enhances electrical safety, reducing the risk of fire hazards.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP DIN-T Miniature Circuit Breaker MCB DC 10kA 1 Pole 2A C Curve is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.

DTMDC102C-AU-MCB-DC-10kA-1P-C-Curve-Datasheet.pdf (DTMDC102C-AU-MCB-DC-10kA-1P-C-Curve-Datasheet.pdf, 193 Kb) [Download]
