Miniature Circuit Breaker 10kA 1 Pole 25A | C Curve | Compact DIN Rail by NHP
Miniature circuit breaker with 10kA breaking capacity and C curve trip—ideal for residential, commercial, and industrial applications. Built for safety and reliability, with compact DIN rail design for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

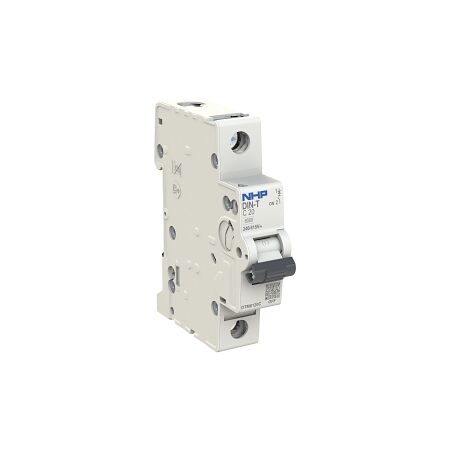

Product Name/Title: NHP DIN-T Miniature Circuit Breaker MCB 10kA 1 Pole 25A C Curve
Brand: NHP
SKU: DTM10125C
Alternatively Known As: Miniature Circuit Breaker, MCB, 25A Circuit Breaker, DIN Rail Circuit Breaker
Technical Specifications
- Rated Current: 25 A
- Number of Poles: 1
- Trip Curve: C
- Rated Voltage: 240 V
- Frequency: 50-60 Hz
- Rated Short Circuit Breaking Capacity: 10 kA
- Degree of Protection: IP40
- Connectable Conductor Cross Section: 0.75-35 mm²
- Rated Insulation Voltage: 440 V
- Rated Impulse Withstand Voltage: 4 kV
- Pollution Degree: 3
- Rated Surrounding Temperature: 30 °C
- Ambient Temperature: -25 to 55 °C
- Dimensions (H x L x W): 85mm x 75mm x 17.5mm
- Weight: 0.12 kg
Key Features
- 10kA short circuit breaking capacity.
- C curve trip characteristic for general applications.
- Compact design suitable for DIN rail mounting.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- Industrial: Machinery and equipment protection
Standards & Compliance
- Complies with AS/NZS 60898 for circuit breakers.
Environmental Benefits
- Enhances electrical safety, reducing the risk of fire hazards.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP DIN-T Miniature Circuit Breaker MCB 10kA 1 Pole 25A C Curve is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.
