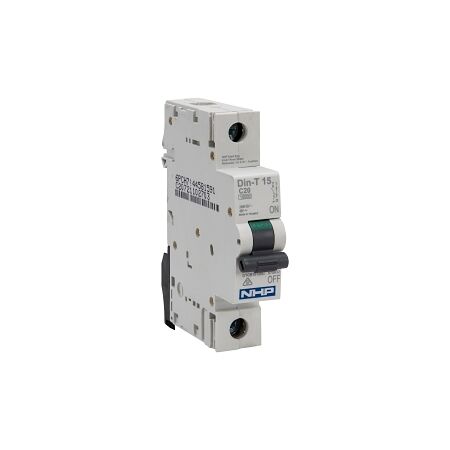

Miniature Circuit Breaker 15kA 1Pole 63A | C Curve | IP40 by NHP
Miniature circuit breaker with 63A rated current and C curve trip—ideal for residential, commercial, and industrial applications. Built for safety and efficiency, with 15kA short circuit capacity and IP40 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NHP DIN-T Miniature Circuit Breaker 15kA 1Pole 63A C Curve
Brand: NHP
SKU: DTCB15163C
Alternatively Known As: Miniature Circuit Breaker, MCB, 1 Pole Circuit Breaker
Technical Specifications
- Rated Current: 63 A
- Number of Poles: 1
- Trip Curve: C
- Rated Voltage: 240 V
- Frequency: 50-60 Hz
- Voltage Type: AC/DC
- Rated Short Circuit Breaking Capacity: 15 kA
- Max Rated Operation Voltage: 250 V
- Rated Insulation Voltage: 440 V
- Rated Impulse Withstand Voltage: 6 kV
- Degree of Protection: IP40
- Connectable Conductor Cross Section: 1-35 mm² (solid), 1-25 mm² (multi-wired)
- Pollution Degree: 3
- Rated Surrounding Temperature: 30 °C
- Ambient Temperature During Operating: -25-70 °C
- Dimensions (H x L x W): 86mm x 76mm x 18mm
- Weight: 0.12 kg
Key Features
- Rated current of 63A with a C curve trip characteristic.
- 15kA short circuit breaking capacity.
- IP40 protection rating.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, offices
- Commercial: Retail, hospitality, workspaces
- Industrial: Machinery and equipment protection
Standards & Compliance
- Complies with AS/NZS 60947 for safety and performance standards.
Environmental Benefits
- Designed for energy efficiency and safety in electrical installations.
Warranty Information
Standard warranty applies.
Available Now
The NHP DIN-T Miniature Circuit Breaker 15kA 1Pole 63A C Curve is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.
