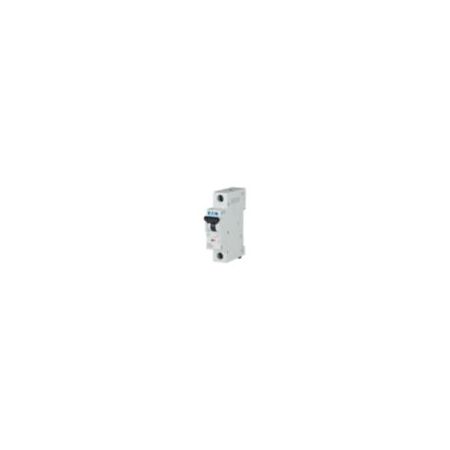

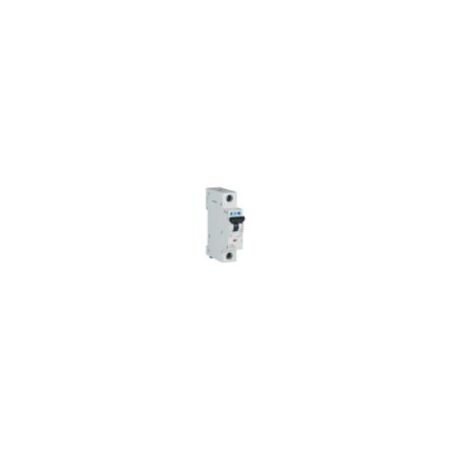

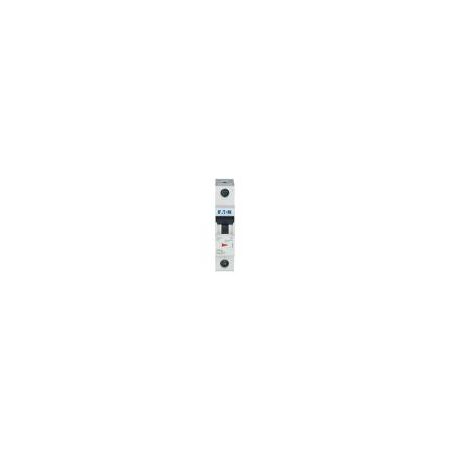

Miniature Circuit Breaker 1A | Single-Pole | Tripping Characteristic C | IP40 by Eaton
Miniature circuit breaker rated at 1A with a tripping characteristic C—ideal for branch circuit protection in industrial and commercial applications. Built for safety and efficiency, it features a rated switching capacity of 15 kA and twin-purpose terminals for versatile connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Miniature Circuit Breaker 1A | Single-Pole | Tripping Characteristic C | IP40 by Eaton
Brand: Eaton
SKU: Y7-278546
Alternatively Known As: Miniature Circuit Breaker 1A, FAZ MCB 1 Pole, Eaton FAZ-C1/1, xEffect FAZ MCB
Technical Specifications
- Product Type: Miniature Circuit Breaker (MCB)
- Number of Poles: 1
- Tripping Characteristic: C
- Rated Current: 1 A
- Voltage Rating AC: 240 V AC / 415 V AC
- Voltage Rating DC: 60 V DC per pole
- Rated Switching Capacity: 15 kA (IEC/EN 60947-2), 10 kA (IEC/EN 60898-1)
- Breaking Capacity: 10 kA (UL1077)
- Frequency Rating: 50-60 Hz
- Rated Insulation Voltage: 440 V
- Rated Impulse Withstand Voltage: 4 kV
- Mounting Method: Top-hat rail IEC/EN 60715
- Terminal Type: Twin-purpose terminals
- Connectable Conductor Cross Section: 1 mm² to 25 mm²
- Degree of Protection: IP40 when fitted
- Ambient Operating Temperature: -25 °C to 75 °C
- Electrical Lifespan: 10,000 operations
- Selectivity Class: 3
- Overvoltage Category: III
- Pollution Degree: 2
- Dimensions (H x L x W): 75.5mm x 80mm x 17.7mm
- Weight: 0.111 kg
Key Features
- Single-pole miniature circuit breaker with tripping characteristic C
- Rated current: 1 A
- Voltage rating: 240 V AC / 415 V AC, 60 V DC per pole
- Rated switching capacity up to 15 kA (IEC/EN 60947-2)
- Twin-purpose terminals for solid and multi-wired conductors
- Mounting on top-hat rail IEC/EN 60715
- Finger and hand touch safe terminals
- Ambient operating temperature range: -25 °C to 75 °C
- Additional equipment possible
- Complies with multiple international standards including IEC/EN 60947-2, UL, CSA
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with safety standards and proper integration into electrical switchgear.
Applications
- Branch circuits protection
- Industrial and advanced commercial switchgear applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances electrical safety reducing risk of fire and electrical faults
- Supports energy efficiency by protecting circuits and preventing overloads
Warranty Information
Warranty details available upon request from Eaton; typically includes coverage against manufacturing defects.
Available Now
The Eaton Moeller series xEffect FAZ-C1/1 Miniature Circuit Breaker is available for immediate purchase, ideal for industrial and commercial electrical protection applications.
