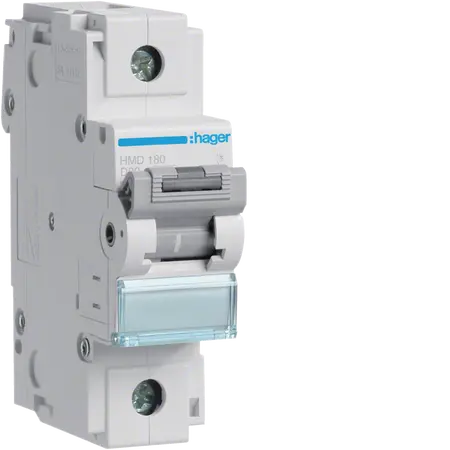

Miniature Circuit Breaker 1P 15kA | D-80A | 240-415V | Easy Installation by Hager

BRAND: :hager
SKU: HMD180T
$177.60 List price: $227.10
+ −
30 Days Return Delivery Options
Miniature circuit breaker with 1 pole and D curve, offering 80A current and 15kA breaking capacity—ideal for residential, commercial, and light industrial applications. Built for safety and reliability, with easy screw terminal connections.

Product Name/Title: MCB 1P 15kA D-80A 1.5M

Brand: Hager

SKU: HMD180T

Alternatively Known As: Miniature Circuit Breaker, MCB, Circuit Protection Device

Technical Specifications
  • Rated operational voltage: 240 - 415 V
  • Rated insulation voltage: 500 V
  • Rated impulse withstand voltage: 6000 V
  • Frequency: 50 - 60 Hz
  • Nominal tightening torque: 3.5 - 5.0 Nm
  • Electric current: Rated current 80 A
  • Rated short-circuit breaking capacity: 15 kA
  • Endurance: 4000 electric cycles, 20000 mechanical operations
  • Connection cross-section for massive conductors: 1 - 70 mm²
  • Connection cross-section for flexible conductors: 1 - 50 mm²
  • Dimensions (H x L x W): 90mm x 70mm x 27mm
  • Weight: 0.5 kg
Key Features
  • 1 Pole with D curve for selective tripping
  • Rated current of 80A with 15kA breaking capacity
  • Screw terminal connections for easy installation
  • Suitable for AC voltage supply of 240 - 415V
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, and small buildings
  • Commercial: Offices and retail spaces
  • Industrial: Light industrial applications requiring circuit protection
Standards & Compliance
  • Complies with AS/NZS 60947-2 for circuit breakers.
Environmental Benefits
  • RoHS and REACH compliant, contributing to reduced environmental impact.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Hager MCB 1P 15kA D-80A 1.5M is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.

HMD180T (HMD180T, 128 Kb) [Download]

(PEP_HAGE-00928-V02.01-EN.pdf, 40,154 Kb) [Download]

reach_declaration_HMD180T5.pdf (reach_declaration_HMD180T5.pdf, 103 Kb) [Download]

rohs_declaration_HMD180T5.pdf (rohs_declaration_HMD180T5.pdf, 104 Kb) [Download]

(DECLARATION_21_2310_07_21.pdf, 101 Kb) [Download]

(DECLARATION_23_3059_05_2023.pdf, 439 Kb) [Download]

(DECLARATION_23_2310_05_23.pdf, 455 Kb) [Download]
