Miniature Circuit Breaker 2 Pole 6kA | 6A | 18mm Width by NHP
Miniature circuit breaker with 6kA breaking capacity and 6A rated current—ideal for residential, commercial, and industrial applications. Built for reliable protection, with compact 18mm width for space-saving installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

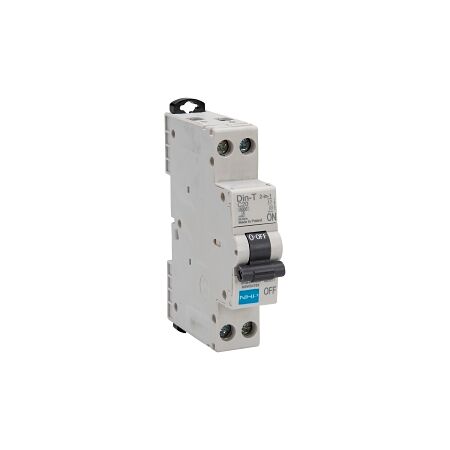

Product Name/Title: NHP DIN-T Miniature Circuit Breaker 2 IN 1 6kA 2Pole 6A 18mm Width
Brand: NHP
SKU: DTCBD6206C
Alternatively Known As: Miniature Circuit Breaker, MCB, 2 Pole Circuit Breaker
Technical Specifications
- Rated Current: 6 A
- Number of Poles: 2
- Trip Curve: C
- Rated Voltage: 415 V
- Frequency: 50-60 Hz
- Voltage Type: AC/DC
- Rated Short Circuit Breaking Capacity: 6 kA
- Degree of Protection: IP40
- Connectable Conductor Cross Section: 1-16 mm² (solid), 1-10 mm² (multi-wired)
- Rated Insulation Voltage: 400 V
- Rated Impulse Withstand Voltage: 6 kV
- Pollution Degree: 3
- Rated Surrounding Temperature: 30 °C
- Ambient Temperature: -25 to 55 °C
- Dimensions (H x L x W): 86mm x 76mm x 18mm
- Weight: 0.16 kg
Key Features
- 6kA breaking capacity for reliable protection.
- C curve trip characteristic suitable for general applications.
- Compact 18mm width for space-saving installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes and apartments
- Commercial: Offices and retail spaces
- Industrial: Machinery and equipment protection
Standards & Compliance
- Complies with AS/NZS 60898 for safety and performance standards.
Environmental Benefits
- Efficient design reduces energy loss and enhances safety.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP DIN-T Miniature Circuit Breaker 2 IN 1 6kA 2Pole 6A 18mm Width is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.
