Miniature Circuit Breaker 2P 20A | C Curve | 10kA Breaking Capacity | IP20 by Clipsal
Miniature circuit breaker with 2-pole, 20A capacity, and C curve—ideal for residential and commercial circuit protection. Built for safety with 10kA breaking capacity and IP20 rating, ensuring reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

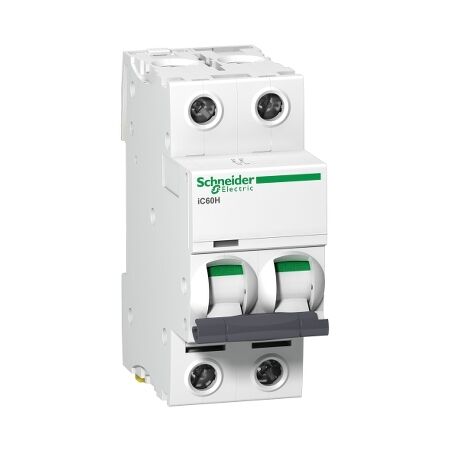

Product Name/Title: Acti9, Miniature circuit breaker (MCB), iC60H Disbo, 2P, 20A, C curve, 10000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2)
Brand: Clipsal
SKU: A9F54220
Alternatively Known As: MCB, Miniature Circuit Breaker, Circuit Breaker, Acti9 MCB
Technical Specifications
- Rated current: 20 A
- Rated operational voltage: 12...440 V AC, 100...133 V DC
- Control type: toggle
- Mounting mode: clip-on
- Trip indicator: yes
- Connections: single terminal (1-25 mm² rigid, 1-16 mm² flexible)
- Rated insulation voltage: 500 V AC
- Rated impulse withstand voltage: 6 kV
- Pollution degree: 3
- Overvoltage category: IV
- Dimensions (H x L x W): 85mm x 78.5mm x 36mm
- Weight: 0.25 kg
Key Features
- Thermal-magnetic trip unit technology
- Breaking capacity of 10 kA at 400 V AC
- IP20 rated for protection against solid objects
- Mechanical durability of 20,000 cycles
- Electrical durability of 10,000 cycles
- Compatible with Acti9 range
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, offices
- Commercial: Retail, hospitality, workspaces
- General: Any location requiring circuit protection
Standards & Compliance
- Complies with EN/IEC 60898-1 and EN/IEC 60947-2 for safety and performance standards.
Environmental Benefits
- Green Premium product status
- Packaging made with recycled cardboard
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Clipsal Acti9 Miniature Circuit Breaker (MCB) iC60H 2P 20A C Curve is available now for immediate purchase. Ideal for residential and commercial spaces requiring circuit protection.
