Miniature Circuit Breaker 3 Pole 80A | D Curve | 415V by NHP
Miniature circuit breaker with 3 poles and D curve, rated for 80A and 415V—ideal for industrial and commercial electrical systems. Built for high inrush current applications, enhancing safety and reducing fire hazards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

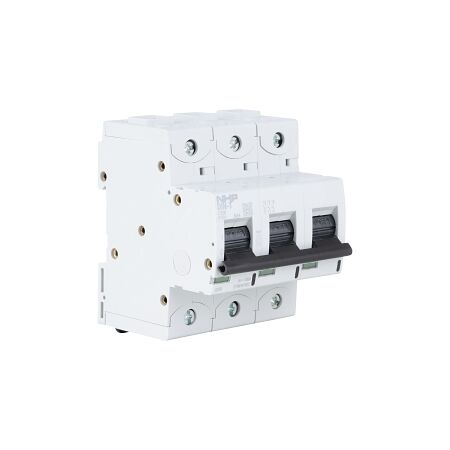

Product Name/Title: NHP DIN-T Miniature Circuit Breaker 10H 3Pole 80A D Curve
Brand: NHP
SKU: DTMH380D
Alternatively Known As: Miniature Circuit Breaker, MCB, 3 Pole Circuit Breaker
Technical Specifications
- Rated Current: 80 A
- Number of Poles: 3
- Trip Curve: D
- Rated Voltage: 415 V
- Frequency: 50-60 Hz
- Voltage Type: AC/DC
- Rated Ultimate Short Circuit Breaking Capacity (ICU) at 125 V DC: 30 kA
- Rated Short Circuit Breaking Capacity (ICU) at 230 VAC: 50 kA
- Rated Short Circuit Breaking Capacity (ICU) at 400 VAC: 50 kA
- Max Rated Operation Voltage: 690 V
- Rated Insulation Voltage: 440 V
- Rated Impulse Withstand Voltage: 6 kV
- Degree of Protection: IP40
- Connectable Conductor Cross Section (Solid Core): 1-70 mm²
- Connectable Conductor Cross Section (Multi-Wired): 1-50 mm²
- Pollution Degree: 3
- Rated Surrounding Temperature Without Derating: 30 °C
- Ambient Temperature During Operating: -25-60 °C
- Dimensions (H x L x W): 100mm x 90mm x 81mm
- Weight: 0.74 kg
Key Features
- 3 poles with D curve for high inrush current applications.
- Rated current of 80A and voltage of 415V.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Electrical distribution systems
- Commercial: Power protection in buildings
- Residential: Circuit protection in homes
Standards & Compliance
- Complies with AS/NZS 60947.2 for circuit breakers.
Environmental Benefits
- Enhances safety in electrical installations, reducing fire hazards.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP DIN-T Miniature Circuit Breaker 10H 3Pole 80A D Curve is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
