Miniature Circuit Breaker 50A 3Pole | 10kA C Curve | UL489 by NHP
Miniature circuit breaker with 50A rated current and C curve trip—ideal for residential, commercial, and industrial applications. Built for comprehensive circuit protection, with 10kA short circuit capacity and UL489 compliance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

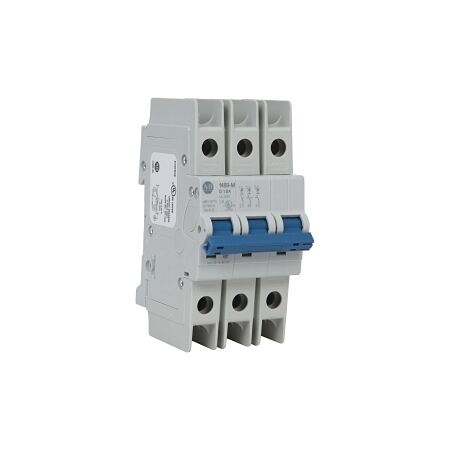

Product Name/Title: Allen-Bradley Miniature Circuit Breaker UL489 10kA 3Pole 50A C Curve
Brand: NHP
SKU: 1489M3C500
Alternatively Known As: MCB, Miniature Circuit Breaker, Circuit Protection Device
Technical Specifications
- Rated Current: 50 A
- Number of Poles: 3
- Trip Curve: C
- Rated Voltage: 415 V
- Frequency: 50-60 Hz
- Voltage Type: AC/DC
- Rated Short Circuit Breaking Capacity: 15 kA
- Max Rated Operation Voltage: 440 V
- Rated Impulse Withstand Voltage: 4 kV
- Degree of Protection: IP40
- Connectable Conductor Cross Section (Solid Core): 1-35 mm²
- Connectable Conductor Cross Section (Multi-Wired): 1-25 mm²
- Pollution Degree: 3
- Rated Surrounding Temperature Without Derating: 30 °C
- Ambient Temperature During Operating: -25-55 °C
- Dimensions (H x L x W): 111mm x 75mm x 52.5mm
- Weight: 0.38 kg
Key Features
- Rated current of 50 A with a C curve trip characteristic.
- 3 poles for comprehensive circuit protection.
- Rated short circuit breaking capacity of 15 kA.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, offices
- Commercial: Retail, hospitality, workspaces
- Industrial: Machinery and equipment protection
Standards & Compliance
- Complies with AS/NZS 60947 for safety and performance standards.
Environmental Benefits
- Designed to operate efficiently within a wide temperature range.
Warranty Information
Standard warranty as per manufacturer guidelines.
Available Now
The Allen-Bradley Miniature Circuit Breaker UL489 10kA 3Pole 50A C Curve is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.
Non-Returnable & Non-Cancellable
