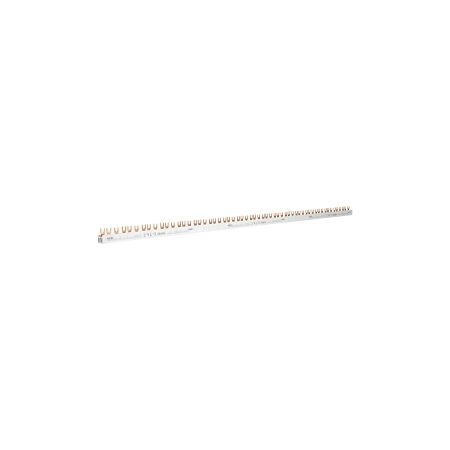

Miniature Circuit Breaker Bus Comb 57 Way | 3 Pole Fork Type | 120A End Feed | 130A Centre Feed by NHP
Miniature circuit breaker bus comb with 57 ways and 3 pole fork type—ideal for industrial and residential power distribution. Built for enhanced safety with insulated design, supporting 120A end feed and 130A centre feed.
Sign in
Please login to continue to your account.
Product Name/Title: NHP DIN-T Miniature Circuit Breaker Bus Comb 57 Way 3Pole Fork Type 120A End Feed 130A Centre Feed
Brand: NHP
SKU: ICL573F
Alternatively Known As: NHP Busbar Comb, Miniature Circuit Breaker Comb, Fork Type Busbar
- Rated Current in Busbar Comb Centre Feed: 130 A
- Rated Current in Busbar Comb End Feed: 120 A
- Type of Electric Connection: Fork
- Number of Phases: 3
- Number of Poles: 57
- Rated Permanent Current (Iu): 130 A
- Conditioned Rated Short Circuit Current (Iq): 25 kA
- Suitable for Number of Devices: 19
- Insulated: Yes
- Module Width: 18 mm
- Cross Section: 16 mm²
- Dimensions (H x L x W): 29.5mm x 18mm x 56mm
- Weight: 1.5 kg
- Busbar Comb Fork Type with 3 Pole configuration
- Rated current of 130A for centre feed and 120A for end feed
- Insulated design for enhanced safety
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Power distribution in commercial and industrial settings
- Residential: Electrical installations requiring circuit protection
- Complies with AS/NZS 3000 for electrical installations.
- Efficient power distribution reduces energy loss and enhances system reliability.
1 year warranty against manufacturing defects.
The NHP DIN-T Miniature Circuit Breaker Bus Comb is available now for immediate purchase. Ideal for industrial and residential electrical installations.
