Miniature Circuit Breaker DC 6kA 2Pole | 1A C Curve | 415V by NHP
Miniature circuit breaker with 1A current and 2 poles, featuring a C curve trip characteristic—ideal for residential and commercial electrical systems. Built for safety and reliability, with 415V rated voltage and IP40 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

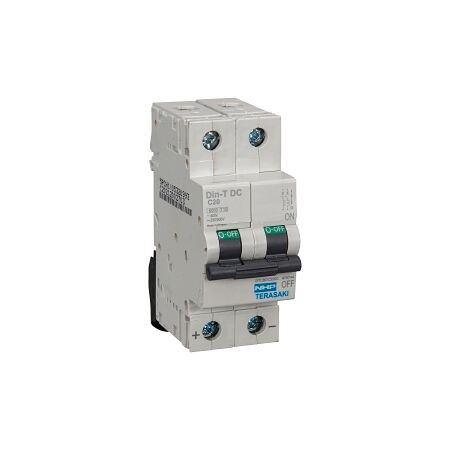

Product Name/Title: NHP DIN-T Miniature Circuit Breaker DC 6kA 2Pole 1A C Curve
Brand: NHP
SKU: DTCBDC201C
Alternatively Known As: Miniature Circuit Breaker, MCB, DC Circuit Breaker
Technical Specifications
- Rated current: 1 A
- Number of poles: 2
- Trip curve: C
- Rated voltage: 415 V
- Frequency: 50-60 Hz
- Voltage type: AC/DC
- Rated ultimate short circuit breaking capacity (ICU) at 125 V DC: 10 kA
- Service voltage (UB) AC: 12 V
- Service voltage (UB) DC: 12 V
- Nominal operating voltage (UN) DC: 500 V
- Rated short circuit breaking capacity (ICN) at 230 VAC: 6 kA
- Rated short circuit breaking capacity (ICN) at 400 VAC: 6 kA
- Max rated operation voltage (UE): 440 V
- Rated insulation voltage (UI): 440 V
- Rated impulse withstand voltage (Uimp): 6 kV
- Concurrently switching neutral conductor: Yes
- Number of protected poles: 2
- Connectable conductor cross section (solid core): 1-35 mm²
- Connectable conductor cross section (multi-wired): 1-25 mm²
- Pollution degree: 3
- Rated surrounding temperature without derating: 30 °C
- Ambient temperature during operating: -25-70 °C
- Dimensions (H x L x W): 86mm x 76mm x 36mm
- Weight: 0.13 kg
Key Features
- Rated current: 1 A
- 2 poles with C curve trip characteristic
- Rated voltage: 415 V
- IP40 protection degree
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices, retail spaces, and industrial applications
Standards & Compliance
- Complies with AS/NZS 60898 and AS/NZS 60947.2 for safety and performance standards.
Environmental Benefits
- Designed to enhance electrical safety and reduce fire hazards.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP DIN-T Miniature Circuit Breaker DC 6kA 2Pole 1A C Curve is available now for immediate purchase. Ideal for residential and commercial electrical systems.
