Miniature Circuit Breaker DC 6kA 2Pole 50A | C Curve | IP40 by NHP
Miniature circuit breaker with 50A rated current and C curve trip—ideal for residential and commercial electrical systems. Built for safety, with compact 36mm design and IP40 protection against dust and moisture.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

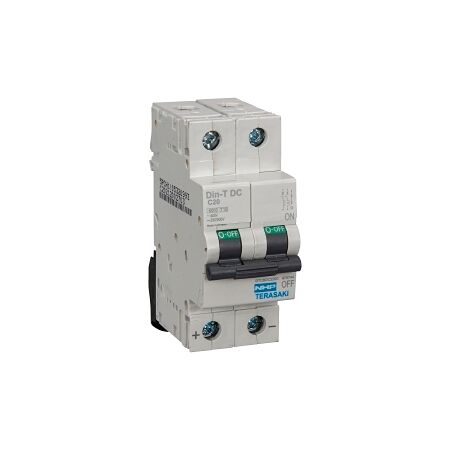

Product Name/Title: NHP DIN-T Miniature Circuit Breaker DC 6kA 2Pole 50A C Curve
Brand: NHP
SKU: DTCBDC250C
Alternatively Known As: Miniature Circuit Breaker, MCB, DC Circuit Breaker, 2 Pole Circuit Breaker
Technical Specifications
- Rated Current: 50 A
- Number of Poles: 2
- Trip Curve: C
- Rated Voltage: 415 V
- Frequency: 50-60 Hz
- Voltage Type: AC/DC
- Rated Ultimate Short Circuit Breaking Capacity (ICU): 10 kA at 125 V DC
- Service Voltage (AC/DC): 12 V
- Nominal Operating Voltage (Un DC): 500 V
- Rated Short Circuit Breaking Capacity (ICN): 6 kA at 230 V AC
- Max Rated Operation Voltage (UE): 440 V
- Rated Insulation Voltage (UI): 440 V
- Rated Impulse Withstand Voltage (Uimp): 6 kV
- Degree of Protection: IP40
- Connectable Conductor Cross Section (Solid Core): 1-35 mm²
- Connectable Conductor Cross Section (Multi-Wired): 1-25 mm²
- Pollution Degree: 3
- Rated Surrounding Temperature Without Derating: 30 °C
- Ambient Temperature During Operating: -25-70 °C
- Dimensions (H x L x W): 86mm x 76mm x 36mm
- Weight: 0.13 kg
Key Features
- Rated current of 50 A with a C curve trip characteristic.
- Compact design with a width of 36 mm for space-saving installation.
- IP40 protection rating for dust and moisture resistance.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices, retail spaces, and industrial applications
Standards & Compliance
- Complies with AS/NZS 60898 for circuit breakers and AS/NZS 60947.2 for low-voltage switchgear.
Environmental Benefits
- Designed to enhance electrical safety, reducing the risk of fire hazards.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP DIN-T Miniature Circuit Breaker DC 6kA 2Pole 50A C Curve is available now for immediate purchase. Ideal for residential and commercial electrical systems.
