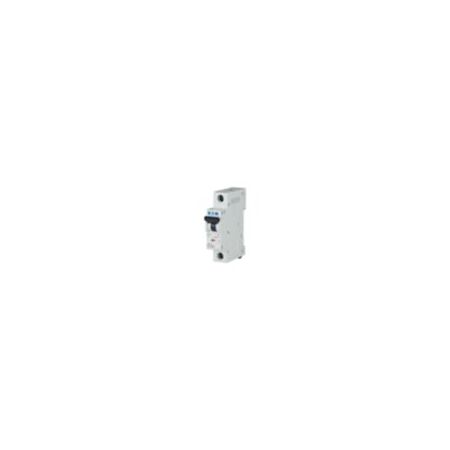

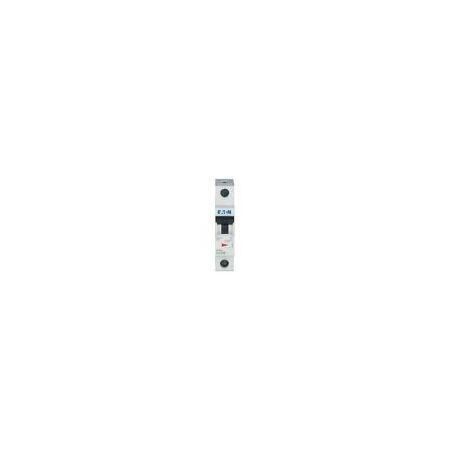

Miniature Circuit Breaker FAZ-C16/1 | 16A Rated Current | C Tripping Characteristic | IP20 Protection by Eaton
The FAZ-C16/1 miniature circuit breaker features a 16A rated current and C tripping characteristic—ideal for branch circuit protection in industrial and commercial applications. Built for safety and reliability, it offers a rated switching capacity of up to 15 kA and operates in ambient temperatures from -25 °C to 75 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Miniature Circuit Breaker FAZ-C16/1 | 16A Rated Current | C Tripping Characteristic | IP20 Protection by Eaton
Brand: Eaton
SKU: Y7-278561
Alternatively Known As: Miniature Circuit Breaker 16A, FAZ MCB C16, Eaton FAZ-C16/1, xEffect FAZ MCB
Technical Specifications
- Product Type: FAZ Miniature Circuit Breaker
- Number of Poles: 1
- Tripping Characteristic: C
- Rated Current: 16 A
- Voltage Rating AC: 240 V AC / 415 V AC
- Voltage Rating DC: 60 V DC per pole
- Rated Switching Capacity: 10 kA (IEC/EN 60898-1), 15 kA (IEC/EN 60947-2)
- Frequency Rating: 50-60 Hz
- Rated Insulation Voltage: 440 V
- Rated Impulse Withstand Voltage: 4 kV
- Mounting Method: Top-hat rail IEC/EN 60715
- Terminal Capacity: Up to 25 mm²
- Degree of Protection: IP20 (IEC), IP40 when fitted
- Electrical Lifespan: 10,000 operations
- Selectivity Class: 3
- Overvoltage Category: III
- Pollution Degree: 2
- Heat Dissipation: 2.2 W
- Ambient Operating Temperature: -25 °C to 75 °C
- Dimensions (H x L x W): 75.5mm x 80mm x 17.7mm
- Weight: 0.11 kg
Key Features
- Single-pole miniature circuit breaker with tripping characteristic C
- Rated current: 16 A
- Voltage rating: 240 V AC / 415 V AC, 60 V DC per pole
- Rated switching capacity up to 15 kA (IEC/EN 60947-2)
- Twin-purpose terminals for solid and multi-wired conductors
- Mounting on top-hat rail IEC/EN 60715
- Finger and hand touch safe terminals
- Ambient operating temperature range: -25 °C to 75 °C
- Additional equipment possible
- Ambient temperature affects current carrying capacity (1 °C increase reduces capacity by 0.5%)
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with safety standards and proper integration into electrical systems.
Applications
- Branch circuits protection
- Industrial switchgear
- Advanced commercial electrical applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps prevent electrical faults and fires, enhancing safety and reducing environmental damage
- Complies with RoHS, ensuring reduced hazardous substances
Warranty Information
Warranty details available from Eaton; typically includes coverage against manufacturing defects.
Available Now
The Eaton Moeller series xEffect FAZ-C16/1 Miniature Circuit Breaker is available for immediate purchase, ideal for industrial and commercial electrical protection applications.
