Miniature Power Relay 12A 4CO | 12V AC Coil | 400V Max | Compact Design by NHP
Miniature power relay with 12A current and 4 changeover contacts—ideal for industrial automation and control panels. Built for reliable switching, with a compact design and 400V max operation voltage.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

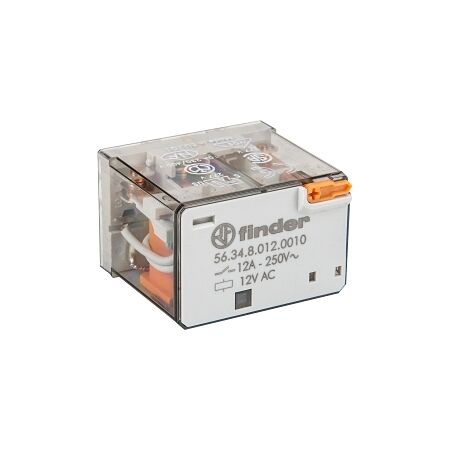

Product Name/Title: Finder 56 Series Miniature Power Relay 12A 4CO 12V AC Coil
Brand: NHP
SKU: 563412VAC
Alternatively Known As: Miniature Power Relay, 12A Relay, Finder Relay
Technical Specifications
- Nominal Current: 12 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage: 400 V
- Number of Contacts: 4 CO
- Rated Switching Power at AC 1: 3000 VA
- Rated Switching Power at AC 15 (230 V): 700 VA
- Electrical Life: 100,000 cycles
- Mechanical Life: 20,000,000 cycles
- Operating Temperature: -40 to 70 °C
- Material of Contact: Silver nickel
- Type of Electric Connection: Plug-in connection
- Dimensions (H x L x W): 28mm x 37mm x 41mm
- Weight: 0.1 kg
Key Features
- General purpose relay with 4 changeover contacts.
- Rated for 12A at 250V AC with a maximum operation voltage of 400V.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching
Standards & Compliance
- Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
- Energy-efficient operation contributes to reduced power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 56 Series Miniature Power Relay 12A 4CO 12V AC Coil is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable switching.
