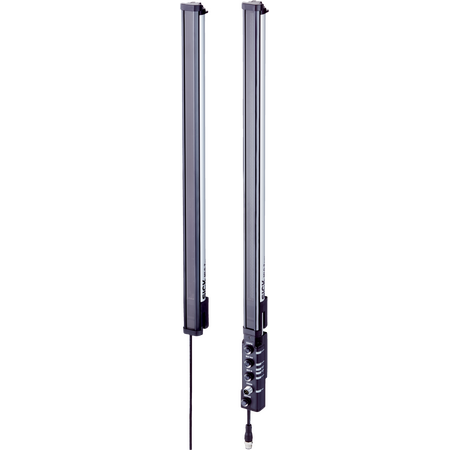

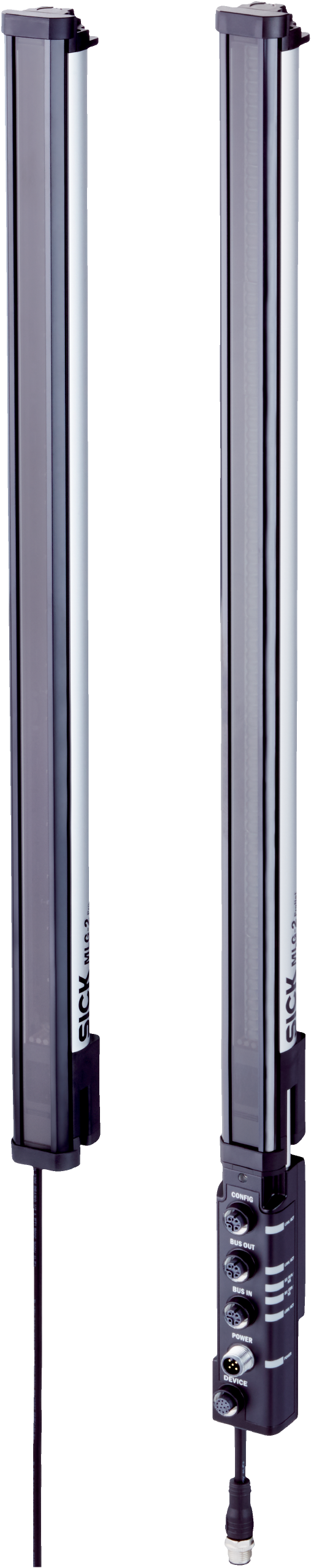

MLG05N-0445N11401 Automation light grids

BRAND: SICK
SKU: 1151080
$8,476.30 List price: $10,653.90
+ −
30 Days Return Electricians Unlock Trade Access
The SICK MLG05N-0445N11401 Automation Light Grid features ProNet extended functionality with 90 infrared beams for precise object detection, recognition

Product Name/Title: MLG05N-0445N11401 | Automation light grids

Brand: SICK

SKU: 1151080

Alternatively Known As: Automation light grid, Safety light curtain, Industrial light barrier, Object detection sensor grid, ProNet light grid

Technical Specifications
  • Dimensions (H x L x W): 445mm x 100mm x 50mm
  • Weight: 1.15 kg
Key Features
  • ProNet extended functionality including fieldbus
  • Sender/receiver sensor principle with 90 beams
  • Minimum detectable object size down to 5 mm
  • Operating modes: Standard, Transparent, Dust- and sunlight-resistant
  • Functions include cross beam, beam blanking, high-speed scan, and high measurement accuracy
  • LED infrared light source with 850 nm wavelength
  • Enclosure rating IP65 and IP67 for robust protection
  • Push-pull PNP/NPN switching output
  • Fast initialization time under 1 second
  • Shock resistance up to 15 g and vibration resistance up to 5 g
  • Includes sender, receiver, fieldbus module, QuickFix brackets, and Quick Start Guide
Professional Installation Requirements
  • Professional installation by qualified personnel is recommended to ensure proper setup and integration with fieldbus systems.
Applications
  • Object detection and object width measurement
  • Object recognition and height classification
  • Hole detection and hole size measurement
  • Outside and inside dimension measurement
  • Object and hole position measurement
  • Zone definition for automation processes
Standards & Compliance
  • Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Durable aluminum housing reduces material waste and extends product life
  • Energy-efficient LED infrared light source minimizes power consumption
  • High measurement accuracy reduces errors and waste in automated processes
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.

Available Now

The SICK MLG05N-0445N11401 Automation Light Grid is available for immediate purchase, ideal for industrial automation and safety applications.
