Trade Discount 20%

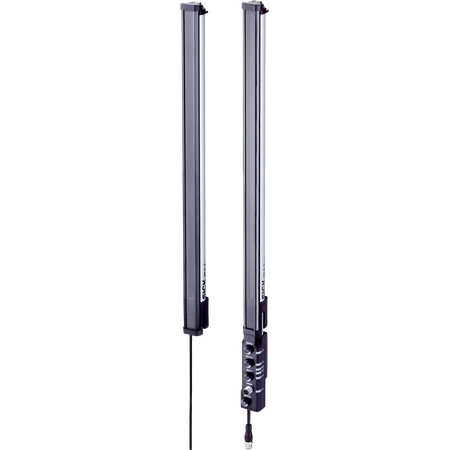

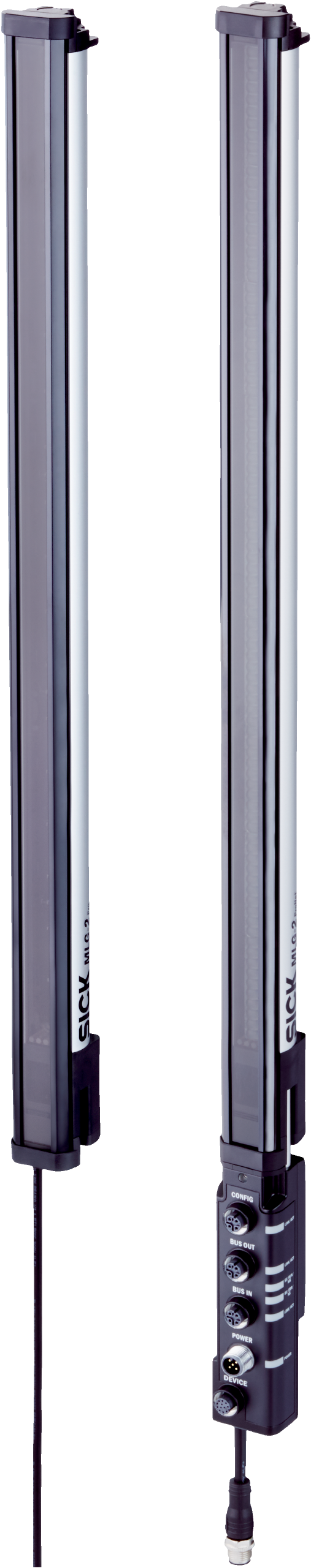

MLG05N-1645N10501 | Automation light grids
The SICK MLG05N-1645N10501 Automation Light Grid features ProNet extended functionality with 330 beams for precise object detection, height classification, and dimensional measurement in industrial automation environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MLG05N-1645N10501 | Automation light grids
Brand: SICK
SKU: 1217339
Alternatively Known As: Automation light grid, Safety light curtain, Industrial light barrier, ProNet light grid, Object detection light grid
Technical Specifications
- Dimensions (H x L x W): 1645mm x 100mm x 1000mm
- Weight: 3.5 kg
Key Features
- ProNet extended functionality including fieldbus
- Sender/receiver sensor principle
- Minimum detectable object size down to 3 mm
- 330 beams with 5 mm beam separation
- Cable synchronization
- Operating modes: Standard, Transparent, Dust- and sunlight-resistant
- Functions include cross beam, beam blanking, high-speed scan, and high measurement accuracy
- LED infrared light source with 850 nm wavelength
- Supply voltage DC 19.2 V to 28.8 V
- Push-pull PNP/NPN switching output
- Housing made of aluminum with PMMA front screen
- Enclosure rating IP65 and IP67
- LED display
- Short initialization time under 1 second
- Robust against shocks and vibrations
- Ambient operating temperature from -30°C to +55°C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper setup and integration with fieldbus systems.
Applications
- Switching output
- Object detection/object width
- Object recognition
- Height classification
- Hole detection/hole size
- Outside/inside dimension
- Object position
- Hole position
- Zone definition
- Object height measurement
- Measurement of outside and inside dimensions
- Measurement of object and hole positions
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable aluminum housing and robust design reduce replacement frequency and waste
- Energy-efficient LED infrared light source minimizes power consumption
- High measurement accuracy reduces errors and material waste in automation processes
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK MLG05N-1645N10501 Automation Light Grid is available for immediate purchase, ideal for industrial automation, object detection, and safety applications.
