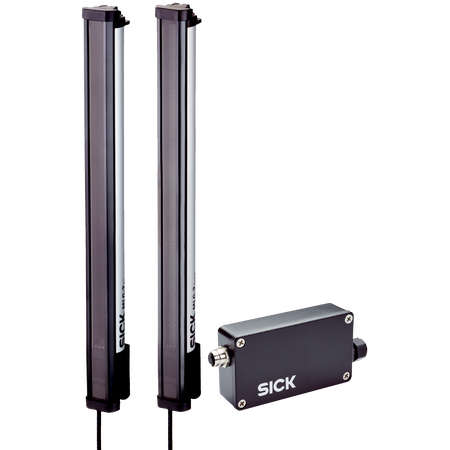

MLG05N-2545U10501 | Automation light grids
The SICK MLG05N-2545U10501 Automation Light Grid is a high-precision sensor system designed for object detection, measurement, and classification in industrial automation, featuring robust IP65/IP67 protection and advanced RS-485 communication.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MLG05N-2545U10501 | Automation light grids
Brand: SICK
SKU: 1219807
Alternatively Known As: Automation light grid, Safety light curtain, Industrial light grid sensor, Object detection light grid, SICK light grid sensor
Technical Specifications
- Dimensions (H x L x W): 2545mm x 100mm x 1000mm
- Weight: 5.3 kg
Key Features
- ProNet replacement product for MLG-1 with terminals
- Sender/receiver sensor principle with 510 beams
- Minimum detectable object size down to 3 mm
- Beam separation of 5 mm with cable synchronization
- Operating modes include standard, transparent, dust- and sunlight-resistant
- Functions include cross beam, beam blanking, high-speed scan, and high measurement accuracy
- LED infrared light source with 850 nm wavelength
- Push-pull PNP/NPN switching output
- Enclosure rated IP65 and IP67 for robust protection
- Aluminum housing with PMMA front screen
- RS-485 interface with baud rate up to 921.6 kbit/s

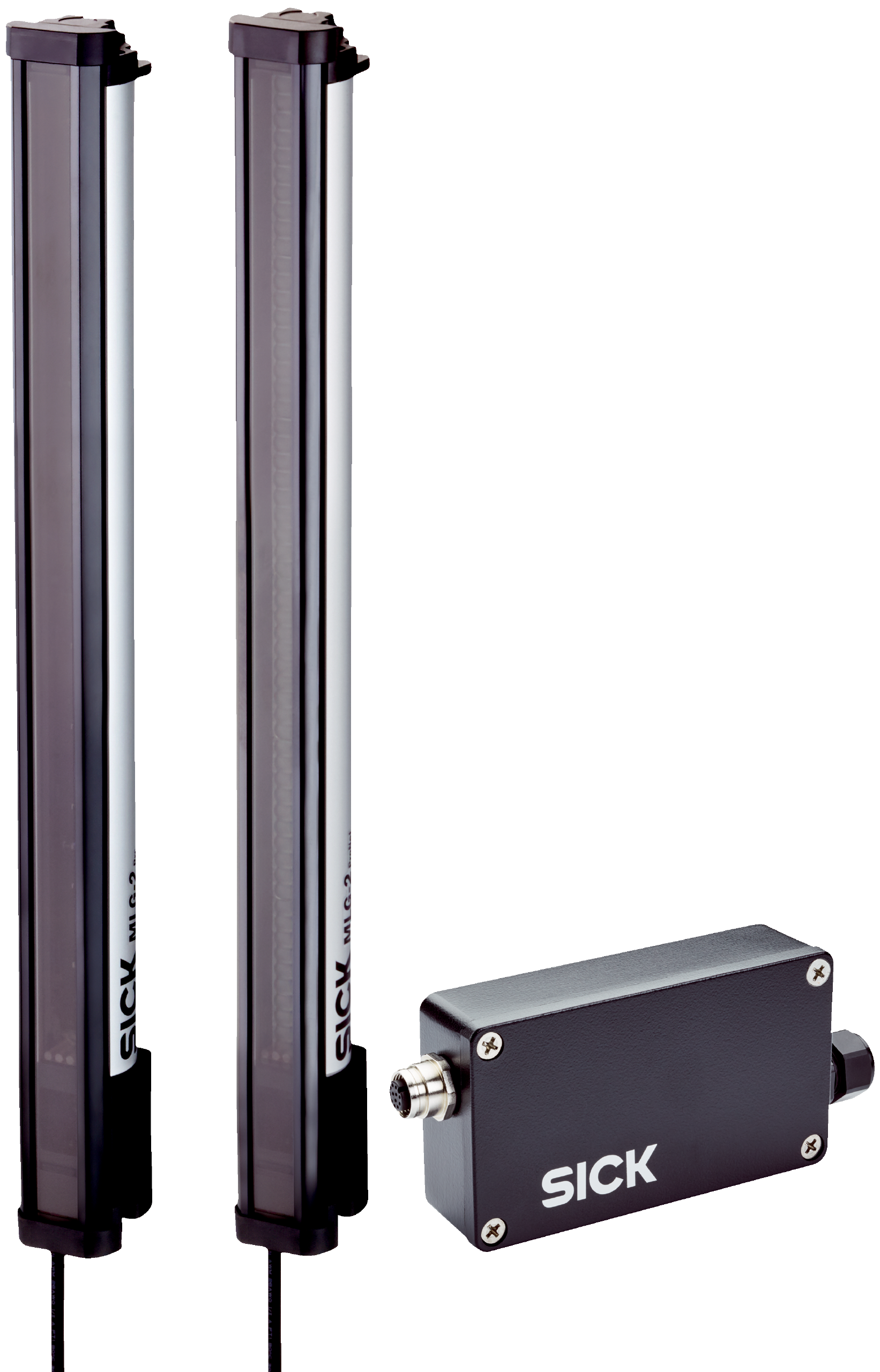

- Includes sender, receiver, fieldbus module, QuickFix brackets, and Quick Start Guide
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Object detection and object width measurement
- Object recognition and height classification
- Hole detection and hole size measurement
- Outside and inside dimension measurement
- Object and hole position measurement
- Zone definition for automation processes
- Data interface for object and hole detection and measurement
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable aluminum housing and robust IP65/IP67 protection reduce waste and extend product life
- Energy-efficient LED infrared light source minimizes power consumption
- Complies with China RoHS for restricted hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK MLG05N-2545U10501 Automation Light Grid is available for immediate purchase, ideal for industrial automation applications requiring precise object detection and measurement.
