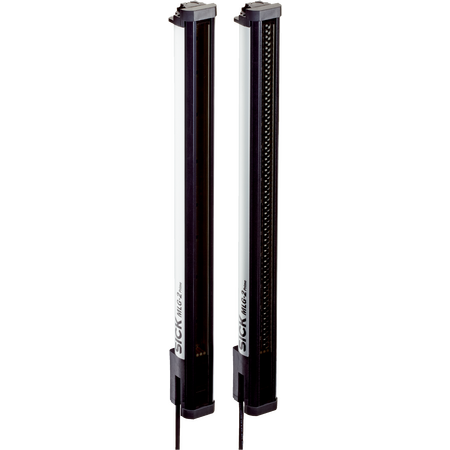

MLG05S-2395A10501 | Automation light grids
The SICK MLG05S-2395A10501 Automation Light Grid is a high-performance sensor system designed for precise object detection, recognition, and height classification with robust industrial features and IP65/IP67 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MLG05S-2395A10501 | Automation light grids
Brand: SICK
SKU: 1215105
Alternatively Known As: Automation light grid, Light curtain sensor, Object detection grid, Height measurement light grid
Technical Specifications
- Device version: Prime - Standard functionality
- Sensor principle: Sender/receiver
- Minimum detectable object: 9 mm
- Number of beams: 480
- Beam separation: 5 mm
- Detection height: 2395 mm
- Light source: LED, Infrared light at 850 nm wavelength
- Supply voltage: DC 19.2 V to 28.8 V
- Power consumption sender: 79 mA
- Power consumption receiver: 216 mA
- Output current max: 100 mA
- Switching output: Push-pull PNP/NPN
- Connection type: Plug, M12, 5-pin, 0.22 m cable
- Enclosure rating: IP65, IP67
- Response time: 50.6 ms
- Operating temperature: -30°C to +55°C
- Shock resistance: 10 g continuous, 15 g single shocks
- Vibration resistance: 5 g sinusoidal oscillation
- Data interface: IO-Link V1.1, analog current output 4-20 mA
- Dimensions (H x L x W): 2395mm x 100mm x 50mm
- Weight: 5.05 kg
Key Features
- Prime - Standard functionality device version
- Sender/receiver sensor principle
- Minimum detectable object size of 9 mm
- 480 beams with 5 mm beam separation
- Optical synchronization
- Operating mode: Standard
- Functions include cross beam and beam blanking
- LED infrared light source with 850 nm wavelength
- Push-pull PNP/NPN switching output
- IP65 and IP67 rated enclosure
- Aluminum housing with PMMA front screen
- Response time of 50.6 ms
- IO-Link V1.1 and analog current outputs
- Shock resistance up to 15 g and vibration resistance 5 g
- Operating temperature range from -30°C to +55°C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper alignment, electrical connection, and compliance with safety standards.
Applications
- Object detection
- Object recognition
- Height classification
- Height measurement
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED infrared light source reduces power consumption
- Durable aluminum housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MLG05S-2395A10501 Automation Light Grid is available for immediate purchase, ideal for industrial automation applications requiring precise object detection and height measurement.
