MLG05W-0200E12503 | Automation light grids

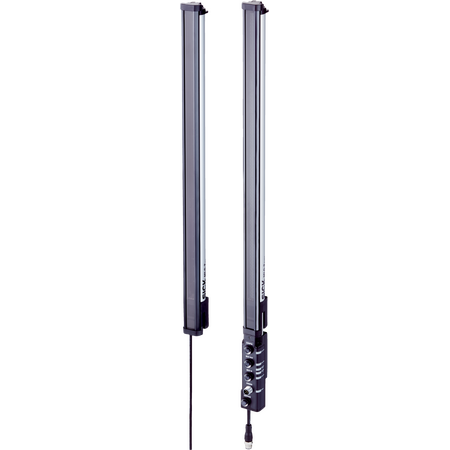

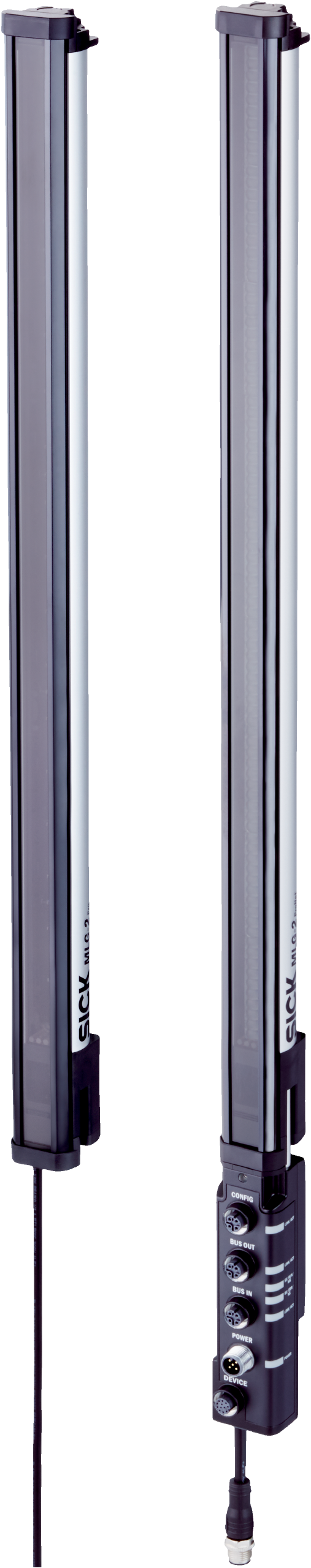

The SICK MLG05W-0200E12503 Automation Light Grid is a high precision web guiding sensor system featuring 60 beams, 0.1 mm resolution, and robust IP65/IP67 rated aluminum housing for industrial automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MLG05W-0200E12503 | Automation light grids
Brand: SICK
SKU: 1132650
Alternatively Known As: Automation light grid, web guiding sensor, industrial light curtain, SICK light grid sensor
Technical Specifications
- Dimensions (H x L x W): 379mm x 31mm x 34mm
- Weight: 0.859 kg
Key Features
- Web guiding device version
- Sender/receiver sensor principle
- 60 beams with 5 mm beam separation
- High resolution mode with 0.1 mm resolution
- Cycle time of 32 µs per beam
- Repeatability of 6 µm and accuracy of ± 0.3 mm
- LED infrared light source at 850 nm wavelength
- IP65 and IP67 rated enclosure for harsh environments
- Push-pull PNP/NPN switching output
- Cable synchronization type
- Includes sender, receiver, Fieldbus module, QuickFix brackets, and Quick Start Guide
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for web guiding
- High resolution object detection and measurement
- Quality control and process monitoring in manufacturing
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with 58 mA (sender) and 132 mA (receiver)
- Durable aluminum housing extends product life reducing waste
- Photobiological safety certified to IEC EN 62471
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK MLG05W-0200E12503 Automation Light Grid is available for immediate purchase, ideal for industrial automation and web guiding applications.
