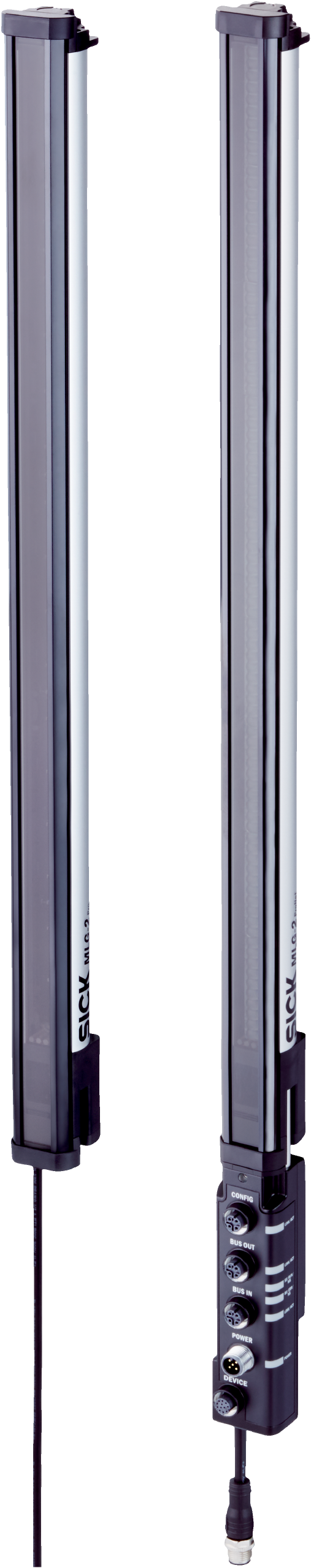

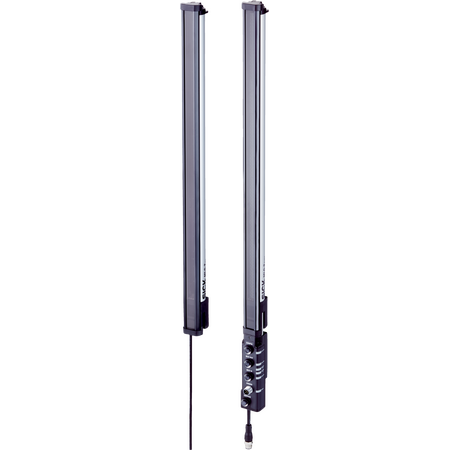

MLG05W-0343N12501 | Automation light grids
The SICK MLG05W-0343N12501 Automation Light Grid is a high-precision web guiding sensor system designed for industrial automation applications, offering fast response, high resolution, and robust IP65/IP67 rated aluminum housing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MLG05W-0343N12501 | Automation light grids
Brand: SICK
SKU: 1116777
Alternatively Known As: Automation Light Grid, Web Guiding Light Grid, Industrial Light Grid Sensor, SICK Light Grid Sensor
Technical Specifications
- Device version: Web guiding
- Sensor principle: Sender/receiver
- Minimum object length: 4 mm
- Beam separation: 5 mm
- Resolution: 0.1 mm
- Cycle time: 32 µs per beam
- Repeatability: 6 µm
- Accuracy: ± 0.3 mm
- Type of synchronization: Cable
- Number of beams: 180
- Total measuring field width: 1,495 mm
- Measuring field width (connection side): 445 mm
- Blind zone (medium range): 605 mm
- Measuring field width (head side): 445 mm
- Light source: LED, Infrared light
- Wavelength: 850 nm
- Supply voltage: DC 19.2 V to 28.8 V
- Power consumption sender: 64 mA
- Power consumption receiver: 156 mA
- Fieldbus module current consumption: 115 mA
- Ripple: < 5 V pp
- Output current max: 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: < 1 s
- Switching output: Push-pull PNP/NPN
- Connection type: Plug M12 5-pin and 12-pin connectors
- Housing material: Aluminum
- Display: LED
- Enclosure rating: IP65, IP67
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Front screen: PMMA
- Maximum range: 3.5 m
- Minimum range: ≥ 0.2 m
- Operating range: 2.5 m
- Response time: 36.7 ms
- Digital output: 1 (Q1)
- Ambient operating temperature: –30 °C to +55 °C
- Storage temperature: –40 °C to +70 °C
- Shock resistance: Continuous shocks 10 g, 16 ms; Single shocks 15 g, 11 ms
- Vibration resistance: Sinusoidal oscillation 10-150 Hz 5 g
- Ambient light immunity: 100,000 lx
- Dimensions (H x L x W): 1579mm x 31mm x 34mm
- Weight: 3.3 kg
Key Features
- Web guiding device version with sender/receiver sensor principle
- High resolution of 0.1 mm and repeatability of 6 µm
- 180 beams with total measuring field width of 1,495 mm
- Fast cycle time of 32 µs per beam
- LED infrared light source with 850 nm wavelength
- Robust aluminum housing with IP65 and IP67 enclosure rating
- Push-pull PNP/NPN switching output
- Cable synchronization type
- Includes sender, receiver, fieldbus module, QuickFix brackets, and Quick Start Guide
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and electrical safety standards.
Applications
- Web guiding in industrial automation
- Object detection and measurement in manufacturing processes
- Quality control and positioning tasks
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED infrared light source reduces power consumption
- Durable aluminum housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK MLG05W-0343N12501 Automation Light Grid is available for immediate purchase, ideal for industrial automation and web guiding applications.
